RS PRO Solid State Relay, 20 A Load, DIN Rail Mount, 530 V rms Load, 280 V ac Control, Реле

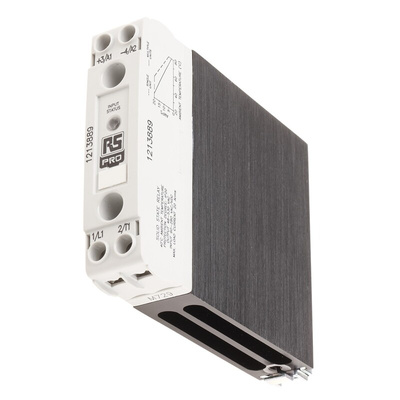

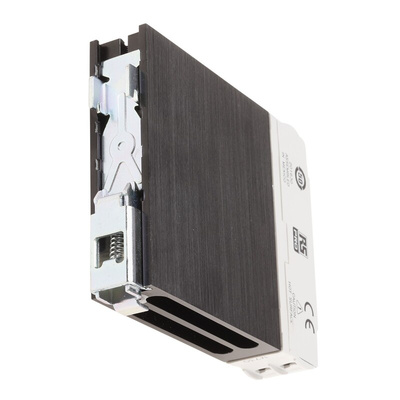

RS PRO 20 A SP Solid State Relay, DIN Rail, 530 V RMS Maximum Load

Use this RS PRO solid state relay to control the opening and closing of circuit contacts and transmit the desired output signals to your applications. It's suitable for both industrial and domestic equipment and appliances.
The slimline design and construction enable you to install the relay in compact spaces. An LED (light-emitting diode) shows whether the unit is on or off and functioning correctly.
An Ingress Protection (IP) rating of IP20 makes the relay safe to touch and means electrical shocks are prevented. You can use this product in your home and workshops.

Features and Benefits

• Capacitance of 8 pF
• Service provider (SP) contact configuration
• Control voltage range of 90 to 280 V AC
• Dimensions of 93.2 (height) x 22.5 (length) x 116.5 (depth) mm
• Load voltage range of 48 to 530 V RMS (root mean square)
• Maximum control voltage of 280 V AC
• Maximum load current of 20 A
• Maximum load voltage of 530 V RMS
• Minimum control voltage of 90 V AC
• Minimum load voltage of 48 V RMS
• Maximum operating temperature of +60°C
• Minimum operating temperature of -20°C
• DIN rail mounting type
• Off-state leakage current of 1 mA RMS (root mean square)
• Solid-state relay type
• LED indicator special features
• Complies with RoHS (Restriction of Hazardous Substances) standards
• Screw terminal type
