RS PRO Solid State Relay, 20 A Load, DIN Rail Mount, 530 V rms Load, 32 V dc Control, Реле

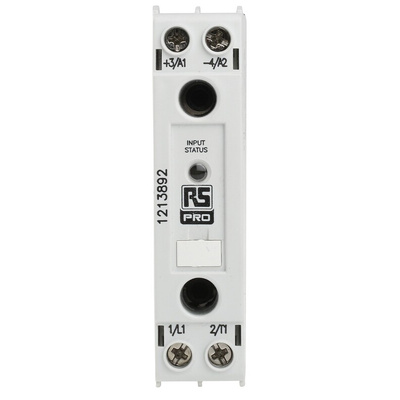

RS PRO 20 A SP Solid State Relay, DIN Rail, 530 Vrms Maximum Load

A solid-state relay lets you switch circuits that carry an AC voltage by means of a low DC voltage, and transfers the signal with an optical light beam. This solid-state relay from RS PRO allows much faster switching than electromechanical equivalents.

This unit has a load voltage range of 48 Vrms to 530 Vrms. It operates quietly and uses little power. With no moving parts, there is no risk of sparks from fast-moving components and the relay is much less prone to wearing out than standard electromechanical models.

The unit's status is shown by an LED power indicator, and the IP20-rated housing means it's safe to touch. It mounts easily onto a standard 35 mm DIN (Deutsches Institut für Normung, or the German Institute of Standardisation) rail. Gas or water meters, motor control and robotics are just some of the common applications in which relays like this are frequently found.

Features and Benefits

• Solid-state relay
• DIN rail mounting type (Deutsches Institut für Normung, or the German Institute of Standardisation)
• Single-pole configuration
• LED status indicator shows when power is supplied to the input
• Screw terminal
• Maximum load current of 20 A
• Maximum load voltage of 530 Vrms
• Minimum load voltage of 48 Vrms
• Capacitance of 8 pF
• Maximum control voltage of 32 V DC
• Minimum control voltage of 4 V DC
• Maximum operating temperature of +60˚C
• Minimum operating temperature of -20˚C
• Depth of 116.5 mm
• Height of 93.2 mm
• Width of 22.5 mm
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
• RoHS (Restriction of Hazardous Substances) compliant
