RS PRO Solid State Relay, 30 A Load, DIN Rail Mount, 530 V rms Load, 32 V dc Control, Реле

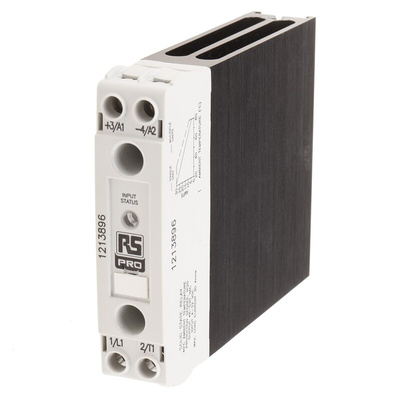

RS PRO 30 A SP Solid State Relay, DIN Rail, 530 V RMS Maximum Load

Need to regulate the opening and closing of circuit contacts in order to transmit the appropriate output signals? Turn to this RS PRO solid-state relay. It's suitable for use in both industrial and domestic applications.


Thanks to the unit's compact design, it can be installed in tight spaces. The integral heat sink prevents the unit from overheating and causing fires by channelling heat away from the circuits.


The unit has an IP20 rating, meaning it's touch-safe to prevent electrical shocks. You can use this relay in your home or workshop.

Features and Benefits

• Capacitance of 8 pF


• SP (single pole) contact configuration


• Control voltage range of 4 to 32 V DC


• Dimensions of 93.2 (height) x 22.5 (length) x 116.5 mm (depth)


• Load voltage range of 48 to 530 V RMS (root mean square)


• Maximum load current of 30 A


• Operating temperature range of -20°C to +60°C

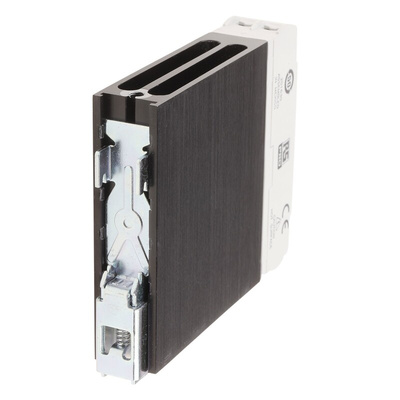

• DIN rail mounting type


• Off-state leakage current of 1 mA RMS (root mean square)


• Solid-state relay type


• LED (light-emitting diode) indicator


• RoHS (Restriction of Hazardous Substances) compliant


• Screw terminal type
