RS PRO 12 Port Single Mode Duplex Fibre Optic Patch Panel With 12 Ports Populated, 1U, Коммутационная панель

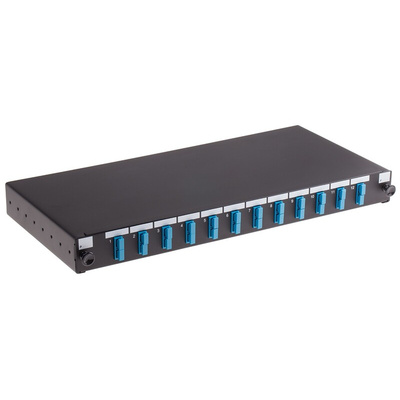

RS PRO 1U Sliding 12 Port Patch Panel

A sliding patch panel with 12 positions for use with fibre optics and designed to accept up to 24 fibres.
With the ability to accept a range of adaptor types and designed to fit into a 1U space in standard 19in racking the fibre optic patch panel can be quickly installed into existing systems with minimum disruption and enables the creation of multi-functional panel that can be easily accessed at any time.
The 1U patch panel comes with 4 standard cable entry points for loose tube, tight buffer, pre-terminated and Steel tape armoured cable for a flexible and high-quality fibre patch panel.

Features and Benefits:

• 12 port fibre optic patch panel


• Accepts up to 24 fibres


• Suitable for use with Ethernet, Fibre Channel, ATM, LAN, MAN and WAN


• Suitable for SC Duplex


• 4 cable entry points (2 x 20mm, 2 x 25mm)


• Suitable for 19in racking


• Dimensions of 482 x 205 x 44.4mm


• IP20 rated


• Operating temperature range of -40°C to +50°C

Standards and Approvals: TIA/EIA 568.C, ISO/IEC 11801, EN50173, IEC60304, IEC61754, RoHS, Reach/SVHC

Why RS PRO?

Looking to reduce costs but keep the same quality?
With a choice of over 65,000 products – all of which are rigorously tested against demanding industry standards before they are given the RS PRO seal of approval.
Trusted by engineers the world over, we want you to be confident that you’re receiving the exceptional quality, reliability and the best value for money.

RS PRO Datasheet
