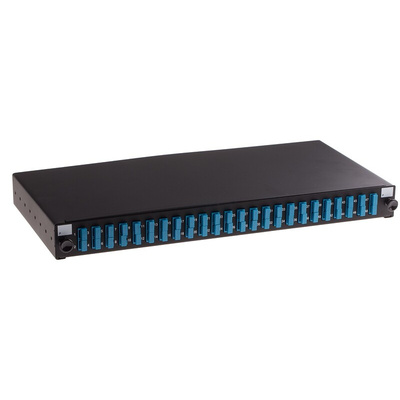

RS PRO 1U Sliding 24 Port Patch Panel

A sliding patch panel with 24 positions for use with fibre optics and designed to accept up to 48 fibres.
With the ability to accept a range of adaptor types and designed to fit into a 1U space in standard 19in racking the fibre optic patch panel can be quickly installed into existing systems with minimum disruption and enables the creation of multi-functional panel that can be easily accessed at any time.

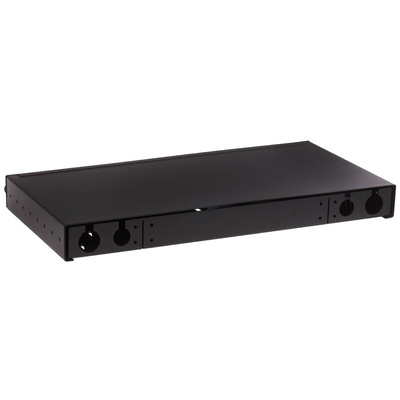

The 1U patch panel comes with 4 standard cable entry points for loose tube, tight buffer, pre-terminated and Steel tape armoured cable for a flexible and high-quality fibre patch panel.

Features and Benefits

• 24 port fibre optic patch panel


• Accepts up to 48 fibres


• SC connections


• Suitable for use with Ethernet, Fibre Channel, ATM, LAN, MAN and WAN


• 4 cable entry points (2 x 20mm, 2 x 25mm)


• 1U size


• Suitable for 19in racking


• Dimensions of 482 x 205 x 44.4mm


• IP20 rated


• Operating temperature range of -40°C to +50°C

Standards and Approvals: TIA/EIA 568.C, ISO/IEC 11801, EN50173, IEC60304, IEC61754, RoHS, Reach/SVHC
