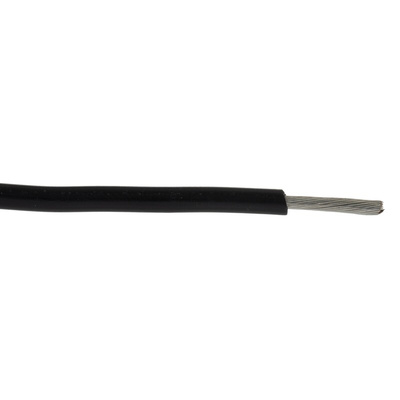

3079 BK005, Alpha Wire 3079 Series Black 2.1 mm² Hook Up Wire, 14 AWG, 41/0.25 mm, 30m, PVC Insulation

Alpha Wire 600 V PVC Hook Up Wire

When every application is critical and wire failure is not an option, choose Alpha Wire PVC hook up wire as your solution. PVC hook up wire benefits from good abrasion resistance and excellent fire resistance. This 600 V PVC hook up wire can be used in temperatures ranging from -20°C to +105°C depending on the application.

Features and Benefits

Stranded or solid tinned copper conductors protecting the wires from corrosion and increasing efficiency in hot and humid environments

Colour-coded insulation for easy circuit identification

Easy to handle, strip and terminate

PVC insulation

Available in lengths of 100 ft (30.5 m) and 1000 ft (305 m)

Product Applications

Hook up wire can be used for a broad range of applications, whether that be in a control cabinet, high-temperature oven, or in a specialised machine tool.

Alpha Wire’s FIT heat-shrink tubing and FIT wire management system can both be used with the Alpha Wire hook up wire range and are an ideal for solving many challenges in electrical and electronic wiring.

Standards

UL AWM 1015, 1028, 1230, 1231, 1232, 1283, 1284, UL MTW (22 to 1/0 AWG), UL THW (6 to 1/0 AWG), CSA AWM I A/B FT1 and TEW 105, UL VW-1

Belden Alpha Wire Hook Up Wire, Single-Core Type, 600V Voltage Rating - 3079 BK005

Want a multi-strand cable that's flexible enough for use in complex setups? Choose this hook up wire from Belden's Alpha Wire range. As its core is made of 41 copper wire strands, it's reliably bendy, as well as being highly conductive. Harsh settings are no match for this flex, which does its job in an operating temperature range between -20°C and +105°C.

Features & Benefits

• 30m length lets you make long runs or complete multiple cut-and-fix jobs
• Standard 14AWG size for wide compatibility
• Resistance of just 2.8Ω/1000ft means it works efficiently with minimal energy waste

Applications

• Process control
• Manufacturing facilities
• Network communication

How thick is this product's insulation?

This hook up wire has PVC insulation that's 0.8mm thick. This offers effective protection against leaky currents and also resists abrasion, oils and fats.
