ADN-25-20-I-P-A, Festo Pneumatic Cylinder - 536262, 25mm Bore, 20mm Stroke, ADN Series, Double Acting, Цилиндр

Festo Double-Acting Pneumatic Cylinder, 25mm Bore, 20mm Stroke - ADN-25-20-I-P-A

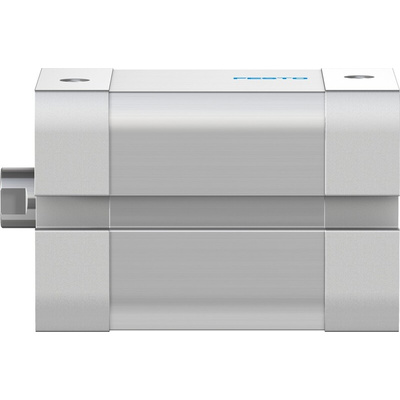

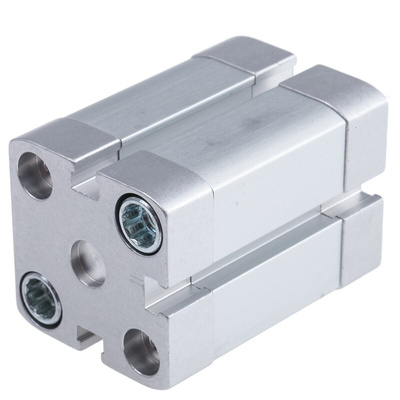

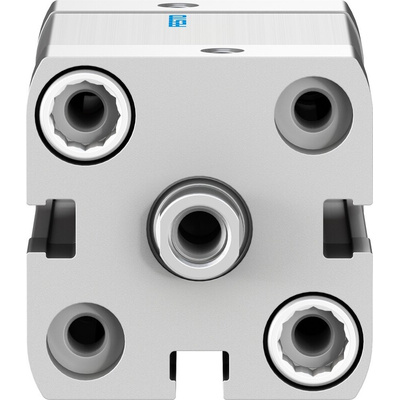

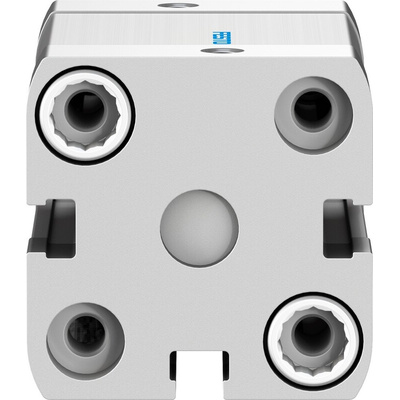

Need to get maximum productivity from a pneumatic cylinder in a small space? This pneumatic actuator from Festo has compact dimensions of 64.5 (height) x 39.5 (width) x 64.5mm (length), making it up to 50% smaller than a standard cylinder. As a double-acting cylinder, it's fitted with two ports so it can extend and retract without needing a spring. You can use it to move a load in two directions with efficiency and precision.

• Maximum operating pressure of 10 bar offers versatility
• Operating temperature range of -20°C to +80°C makes it suitable for a wide range of environments
• Flexible polymer end cushioning reduces noise and vibration, as well as prolonging service life
• Low-friction design enables continuous operation
• M5 connection port for standard compatibility

Applications

• Factory automation
• Manufacturing lithium-ion batteries

Is this cylinder suitable for horizontal or vertical mounting?

This versatile cylinder can be mounted either horizontally or vertically, to suit the needs of your system. By using optional accessories, you can also mount it on a swivel bracket or in a foot to support high loads.

FESTO ADN Series

Festo ADN/AEN

Festo Pneumatic Cylinders Operating Manual

ADN-25-20-I-P-A Specification Sheet
