DSBC-40-100-PPVA-N3, Festo Pneumatic Cylinder - 1376660, 40mm Bore, 100mm Stroke, DSBC Series, Double Acting, Пневмоцилиндр

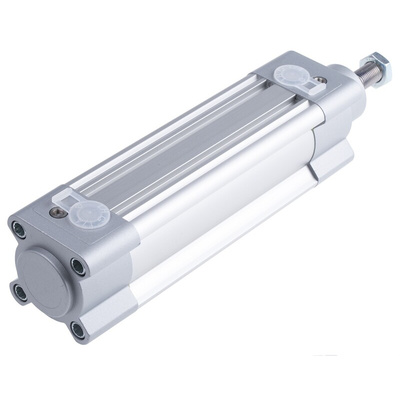

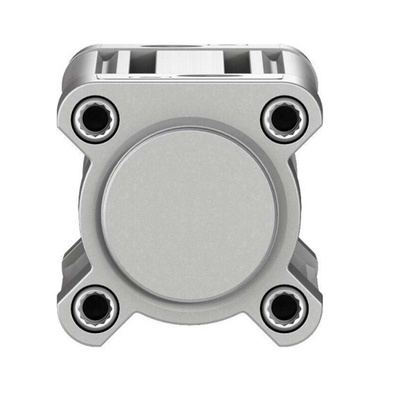

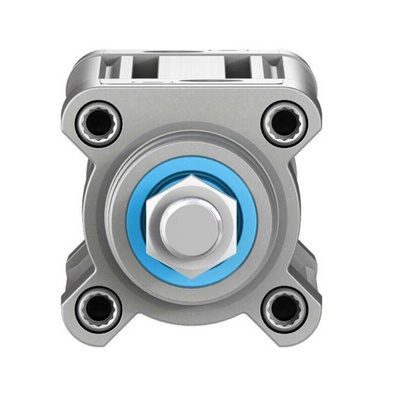

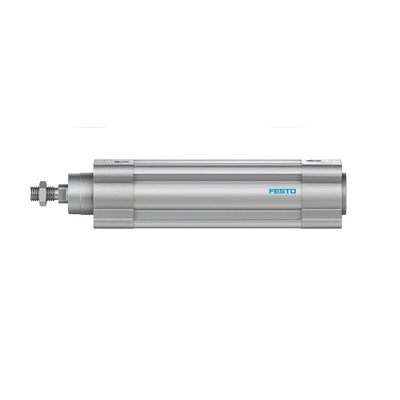

Festo Pneumatic Cylinder, 40mm Bore, 100mm Stroke - DSBC-40-100-PPVA-N3

Use this double-acting cylinder from Festo to effectively move loads in two directions in your pneumatic system. The device has two ports and alternates airflow between both ends to extend and retract its piston. This high alloy steel piston is resistant to corrosion and impact, so delivers a long service life. You can use the cylinder for applications with a pressure range between 0.6 and 12 bar, so it's a versatile solution. Pneumatic cushioning on both ends absorbs pressure and helps to ensure the piston doesn't damage the housing when handling medium-duty to heavy-duty loads.

• Light weight of 740g so it's easy to handle and won't strain your equipment
• Wide operating temperature range of -20°C to +80°C for use in challenging environments
• Compatible with proximity sensors for automated operation
• Polyurethane seals to prevent air leakage for effective performance

Applications

• Robotics and automation systems
• Construction industry
• Automatic doors

What's the difference between a double-acting cylinder and a single-acting one?

A double-acting cylinder uses air to push the piston in two directions, while a single-acting cylinder acts in one direction and retracts with the help of a spring.

Festo DSBC

Festo Pneumatic Cylinders Operating Manual

DSBC-40-100-PPVA-N3 Specification Sheet
