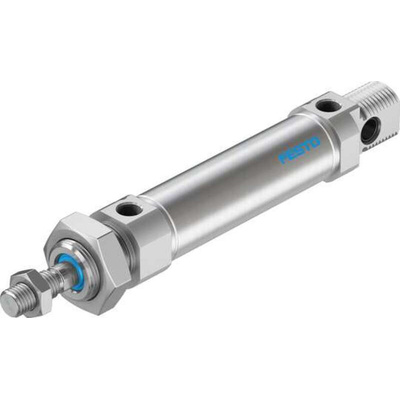

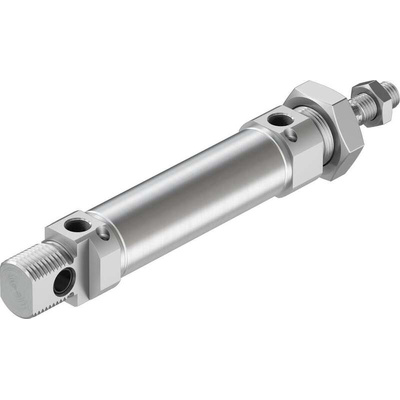

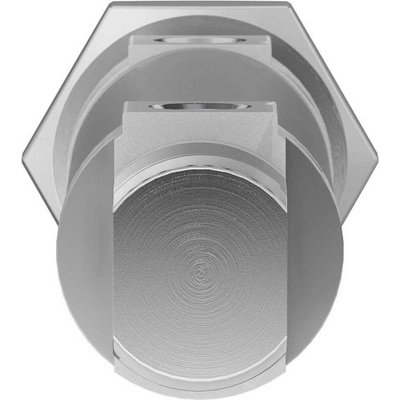

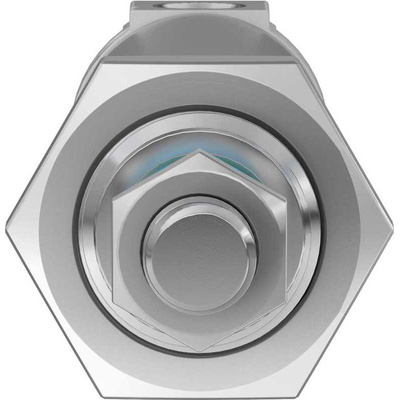

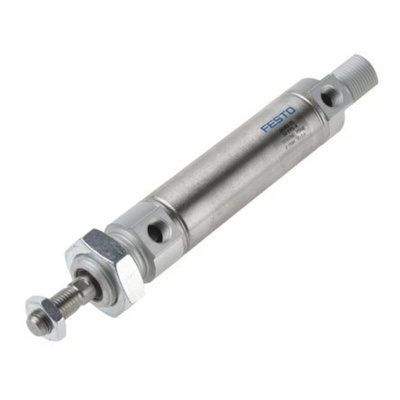

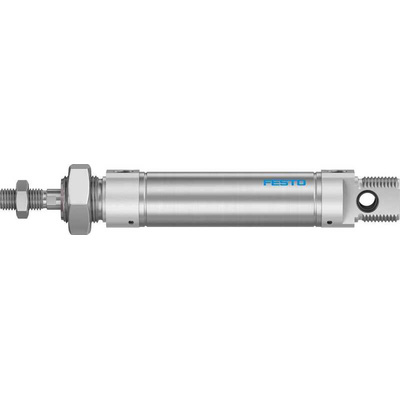

DSNU-25-50-PPV-A, Festo Pneumatic Cylinder - 19246, 25mm Bore, 50mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Cylinder, Air Cushioning Type, 25mm Bore - DSNU-25-50-PPV-A

Put objects exactly where you want them with this pneumatic cylinder from Festo. As a double-acting type, it has a port on each end to give you control over the stroke in forward and backward directions. Adjustable pneumatic cushioning at both ends means you won't need to worry about bumping and shaking, even with heavy loads or at high speeds. The 50mm-stroke cylinder is built to a simple and robust three-part design that you can count on to deliver a long service life.

Features & Benefits

• Performs reliably at a wide operating temperature range of -20°C to +80°C
• NBR seals guard against contamination
• High-alloy steel piston rod and cylinder barrel deliver strength and corrosion resistance
• Anodised wrought aluminium alloy cover is light weight, strong and hardwearing

Applications

• Factory automation
• Paint spraying
• Medical equipment

What's meant by adjustable pneumatic cushioning?

Adjustable pneumatic cushioning traps a fixed volume of air in the end of the cylinder. The amount of air can be changed with a simple twist of a screw, giving you the optimum level of cushioning for your load to avoid impact and vibration stresses.
