MFH-5-1/4, Festo 5/2 Pneumatic Solenoid Valve - Solenoid/Pilot G 1/4 MFH Series 12 → 48V dc, 24 → 240V ac, 6211, Клапан

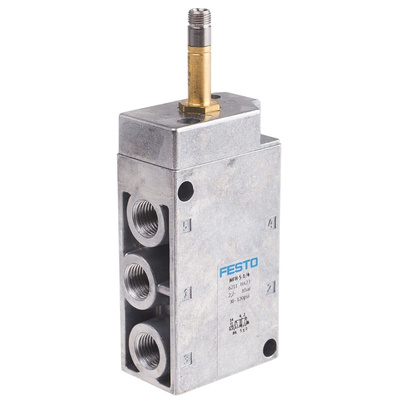

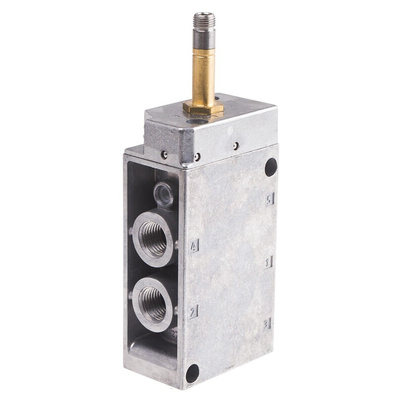

Festo 5/2 Pneumatic Solenoid Valve, 48V DC, 240V AC - MFH-5-1/4, 6211

Looking for a sturdy control device to direct compressed airflow in pneumatic systems? Opt for this solenoid valve from Festo. With die-cast aluminium body material, the unit has excellent durability and can withstand corrosion, so it's suitable for harsh environments. The valve opens and closes when air pressure is applied to its piston. It has a mechanical spring that allows you to easily return it to its original position after actuation. Solenoid valves like this one are used to operate repeated functions in manufacturing facilities.

• Maximum operating pressure of 8 bar for high-performance operations
• Threaded mounting style is easy and saves time and effort
• Solenoid power consumption of 4.5W for optimal energy efficiency
• Can be mounted on either the DIN rail or manifold for flexibility
• Throttleable exhaust air function to discharge excess gas and improve performance
• Festo part number 6211
• Solenoid Voltage 12,24,42,48V dc;
24,42,48,110,230,240V ac

Applications

• Oil rigs
• Chemical production facilities
• Pharmaceutical manufacturing plants
• Automation and robotics

Can I use this component in hazardous areas?

Yes, you can. This product is made with durable materials and has been rated to withstand potentially explosive and hazardous environments.
