QS-1/4-8, Festo QS Series Straight Threaded Adaptor, R 1/4 Male to Push In 8 mm, Threaded-to-Tube Connection Style, 153005, Переходник

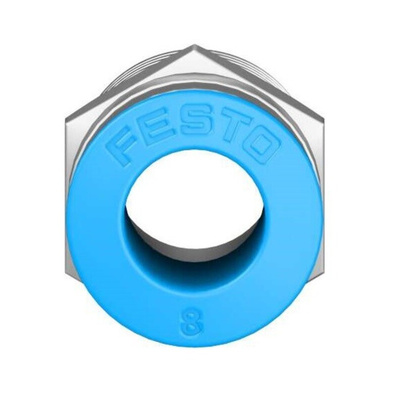

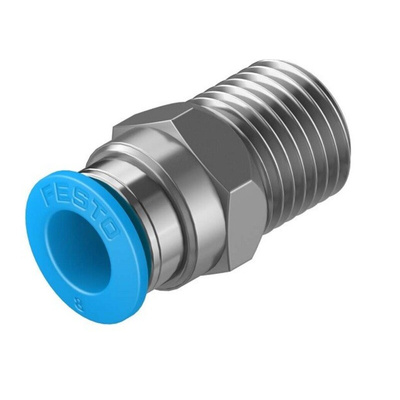

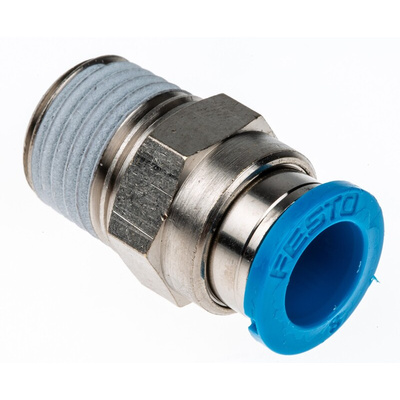

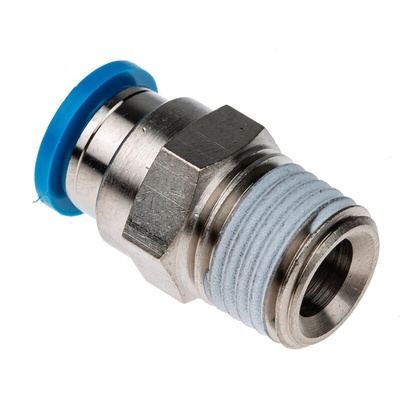

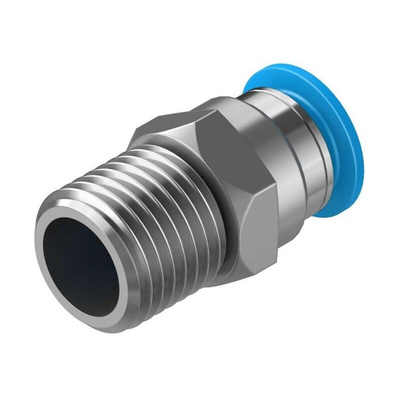

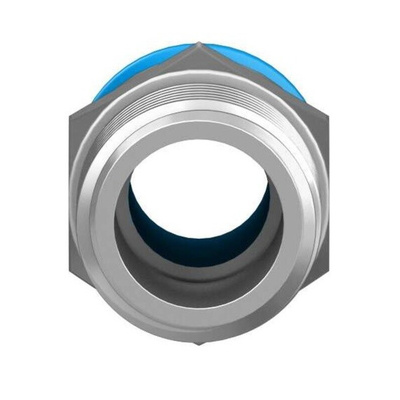

Festo Straight Threaded Adaptor, R1/4 Male to Push In 8mm, 14 Bar Maximum Operating Pressure - QS-1/4-8, 153005

Control the direction of compressed air in your pneumatic system with this durable threaded adaptor from Festo. On one end, it has a male connector made of high alloy steel that's resistant to corrosion for use in harsh environments. The other end has a polyoxymethylene (POM) push-in fitting for easy insertion and removal of pneumatic hoses. Its nitrile butadiene rubber seal prevents air leakages for effective operation. You can use this device for both air and water transmission, so it's a versatile solution.

• Maximum operating pressure of 14 bar makes it suitable for heavy-duty operations
• Broad operating temperature range of -10°C to +80°C for use in demanding conditions
• Light weight of 14g for easy handling
• Can be assembled in any position for maximum flexibility

Applications

• Gas plants
• Sewage treatment facilities
• Material handling equipment

How do I install this adaptor?

The threaded male part of this adaptor attaches to pipes and hoses via screw-in termination and is suitable for making a permanent link. The female end simply pushes in manually. You won't need any specialised tools to install this device.

Festo Push-in fittings and connectors QS

QS-1/4-8 Specification Sheet
