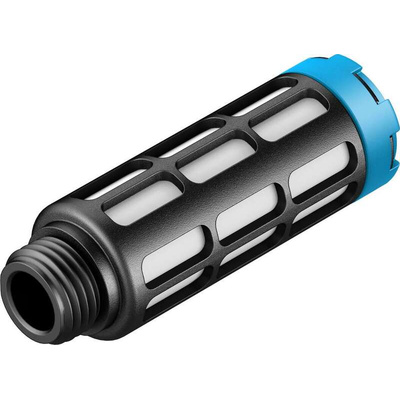

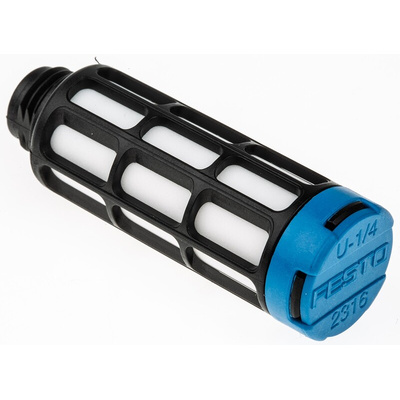

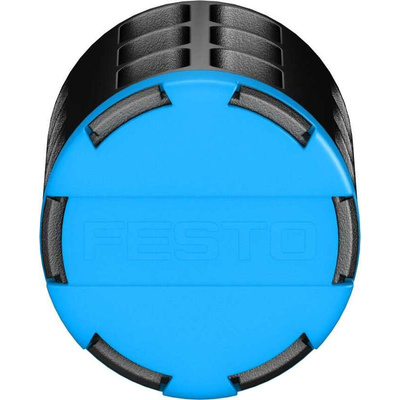

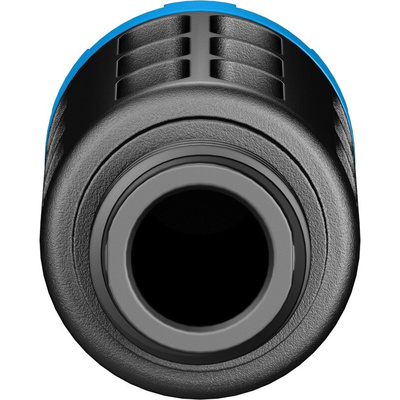

U-1/4, Festo U Pneumatic Silencer

Festo Pneumatic Silencer - U Series - U-1/4

Need to quieten down a noisy pneumatic system? This silencer from Festo's cylinder series helps you create a more comfortable industrial working environment by reducing the sound to safe decibel levels. It also protects tubing and pipes against contamination from dirt, dust or grease, helping your system run smoothly. The 1/4-inch threaded connection makes coupling and uncoupling a simple task. The pneumatic silencer is suitable for use with systems operating up to a maximum pressure of 10 bar.

• G-type pneumatic silencer
• Noise reduction to 77 dB(A)
• 1/4-inch male threaded connection
• Housing manufactured from polyacetal for low friction, stiffness and dimensional stability
• Insert manufactured from durable polyethylene
• Maximum operating pressure of 10 bar
• Operating temperature range from -10˚C to +70˚C
• Weight of 8 g

Range Information

• Festo's cylinder series is designed to reduce noise produced from air exhausts in pneumatic systems
• The silencers act as mufflers to reduce sound to safe levels
• They also act as filters to prevent pneumatic systems from being compromised by dirt, dust or grease
• Free from copper and polytetrafluoroethylene (PTFE)
• Cylinders meet ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards

Festo Silencers

U-1/4 Specification Sheet
