VZXF-L-M22C-M-B-G12-120-H3B1-50-16, Festo Angle Seat type Pneumatic Actuated Valve, BSP 1/2in, 16 bar, Клапан

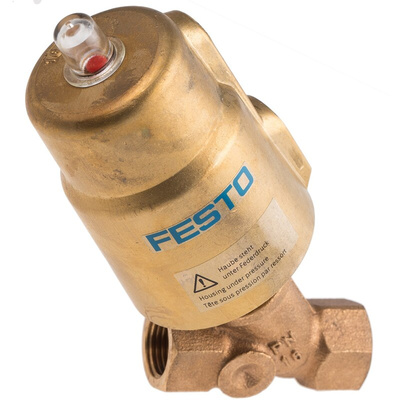

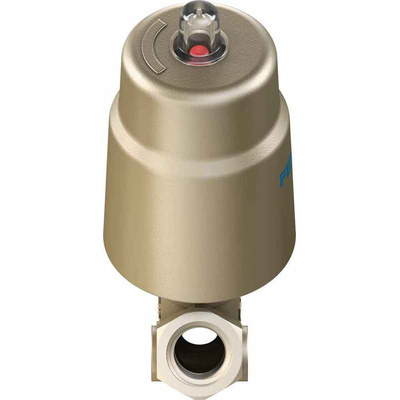

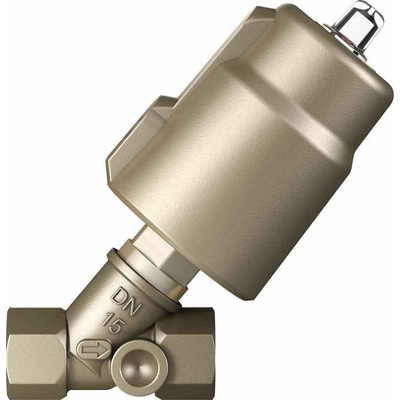

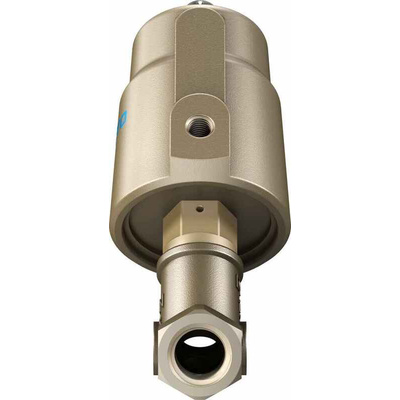

Festo Angle Seat Pneumatic Valve, 1/2 In BSP - VZXF Series - VZXF-L-M22C-M-B-G12-120-H3B1-50-16

Do you need a tube to move aggressive, dirty or viscous liquids? This Festo angle seat pneumatic valve is designed to deliver a long life of heavy use. It's a robust and versatile component that's suitable for high-pressure applications of up to 16 bar. The 'normally closed' position and one-way flow ensure none of the media that's being moved goes back through the valve itself. This makes the product suitable for use as a safety valve.

Features and Benefits • 'Normally closed' default valve position increases safety
• Maximum working pressure of 16 bar for heavy-duty applications
• Spring return type for reliable operation
• BSP (British Standard Pipe) thread standard for compatibility with most fittings

Application Information

• Assembly lines
• Fabrication

Can I only use the valve with liquids?

No, the valve is intended for use with a wide variety of liquids and gases. It shouldn't be used with solids, chemically unstable gases or abrasive media.

Can I install the valve in any direction?

No, the valve must be installed in the direction in which the media will flow.

Festo VZXF

VZXF-L-M22C-M-B-G12-120-H3B1-50-16 Specification Sheet

Declaration of Conformity - 1214321

InstructionSheet - 1214321
