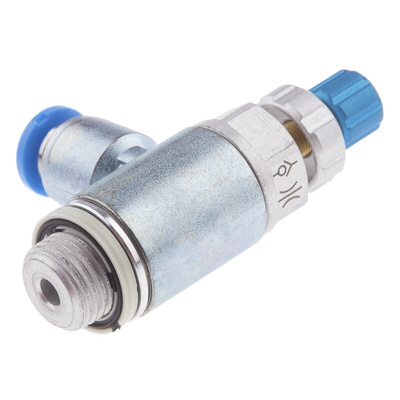

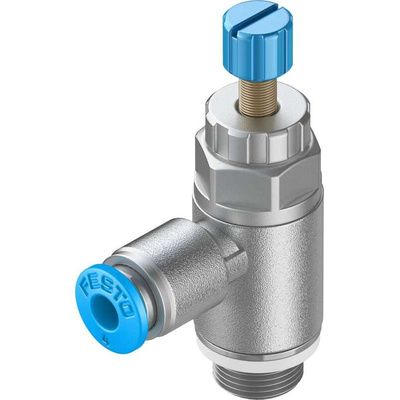

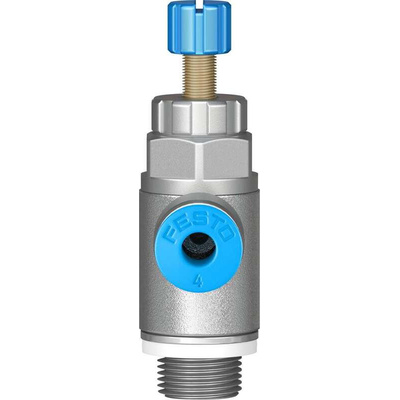

GRLA-1/8-QS-4-RS-D, Festo GRLA Series Tube Exhaust Valve, 4mm Tube Inlet Port x G 1/8 Outlet Port, 197580

Festo Exhaust Valve, Adjustable Flow, 160L/min Nominal Flow Rate - GRLA-1/8-QS-4-RS-D

Seeking a way to safely release exhaust air from your pneumatic system? The search is over thanks to this exhaust valve from Festo. It expels excess media as necessary from your compressed air network to control flow speeds and regulate the movement of attached drivers, such as pistons. There's a handy 4mm push-in inlet port, so it's quick to install tubing without the need for tools. As the outlet's an industry-standard G1/8 threaded type, it's easy to find compatible parts. Along with the unit's NBR seals, a precision thread makes light work of achieving a leak-free connection, so maintaining stable pressures from 0.2 to 10 bar is a cinch.

Features & Benefits

• Adaptable product suits mounting in any position for quick installation
• 360° swivel function makes it easy to connect up from any angle
• Broad operating temperature range of -10°C to +60°C means it works in tough settings
• Also suitable for use with lubricated compressed air to meet your needs

Applications

• Industrial tools
• Automotive manufacture
• Chemical processing

How do I adjust the flow rate on this device?

Adjusting this valve's a doddle – you can use your fingers to twist the non-slip knurled screw or simply turn it with a slotted screwdriver to tailor the flow rate.
