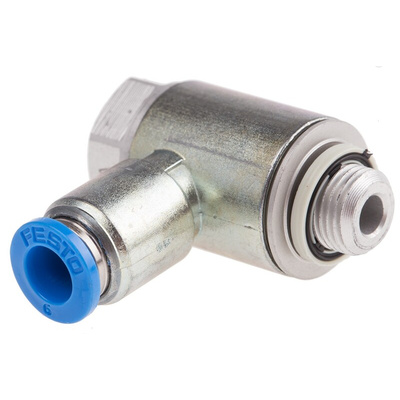

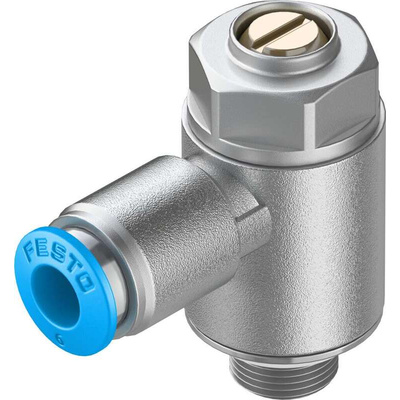

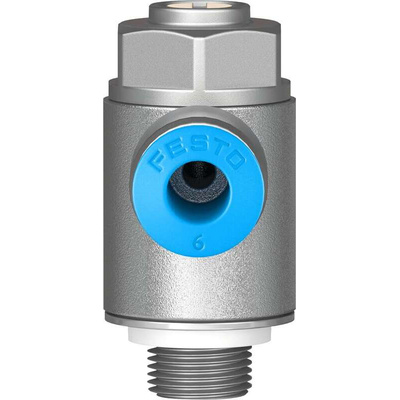

GRLA-1/8-QS-6-MF-D, Festo GRLA Series Tube Exhaust Valve, 6mm Tube Inlet Port x G 1/8 Outlet Port, 537075

Festo Exhaust Valve, One-Way Flow Control Type, 10 Bar Maximum Operating Pressure - GRLA-1/8-QS-6-MF-D

When you need a steadying hand on mechanical motions, turn to this exhaust valve from Festo. It fits neatly into standard pneumatic systems thanks to a G1/8 threaded outlet port and a 6mm push-in tube inlet port. As it's designed with a one-way flow control function, you can use this valve to reliably regulate piston speeds. It handles harsh industrial conditions without breaking a sweat as it has a broad operating temperature range between -10°C and +60°C. Need to tweak flow rate and speed? Simply use a slotted-head screwdriver to make manual adjustments in a snap.

Features & Benefits

• Maximum operating pressure of 10 bar for reliable performance in demanding systems
• Standard nominal flow rate of 400L/min makes it suitable for high-speed piston drivers
• Nominal tightening torque of 3Nm means it's a sturdy choice
• Aluminium alloy body and brass adjusting screw resist corrosion for a long product life
• Push-in QS fittings make mounting a breeze

Applications

• Agricultural equipment
• Pharmaceutical industry
• Medical laboratories
• Robotics engineering

How much does this exhaust valve weigh?

Weighing in at just 32g, this unit puts minimal strain on your pneumatic system.
