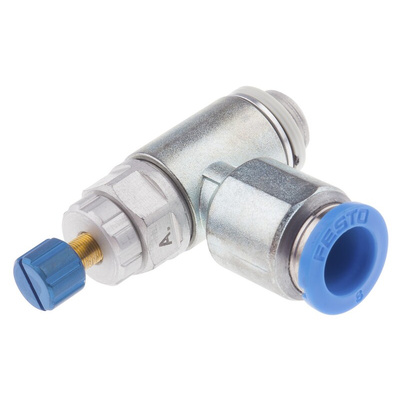

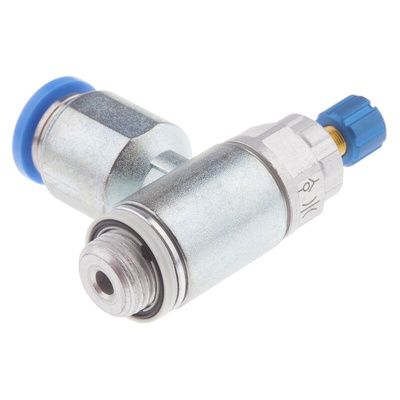

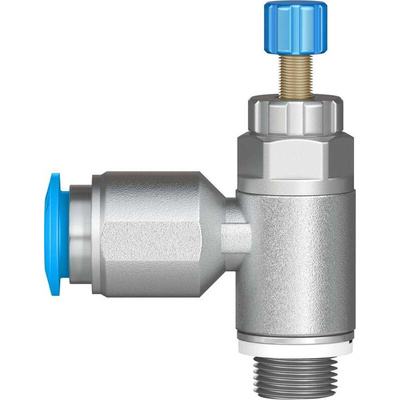

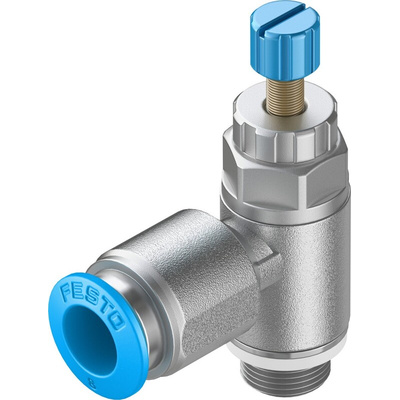

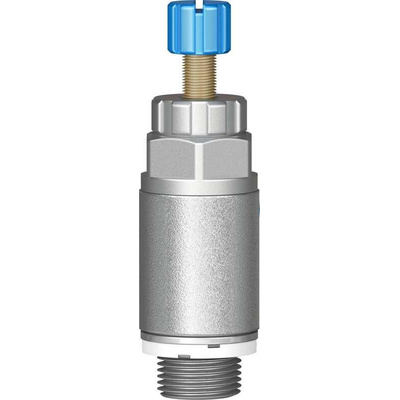

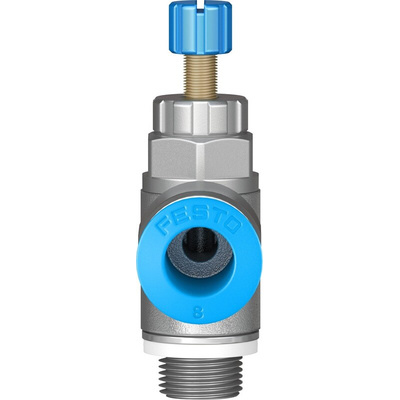

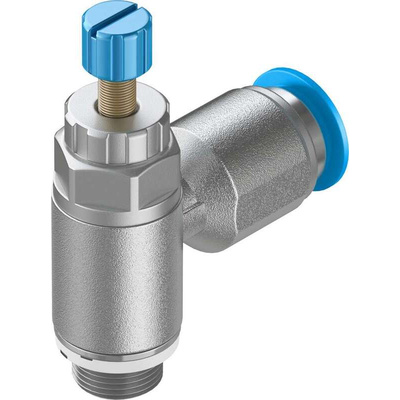

GRLA-1/8-QS-8-RS-D, Festo GRLA Series Tube Exhaust Valve, 8mm Tube Inlet Port x G 1/4 Outlet Port, 534337

Festo Exhaust Valve, Flow Controller Type, 10 Bar Maximum Operating Pressure - GRLA-1/8-QS-8-RS-D

When it comes to your pneumatic system, don't just go with the flow – control it using this exhaust valve from Festo. The unit lets you adjust flow rate according to changes in pressure and temperature. By controlling the speed, you can cut down on compressed exhaust air and stop pneumatic driver pistons from moving too quickly. This one-way valve restricts speed in a single direction, with a nominal flow rate of 215L/min. Push-in fittings make it easy and quick to install.

Features & Benefits

• Resistant to wear and corrosion thanks to robust aluminium alloy body and integral seals that keep contaminants out
• Includes a male G1/8 outlet threaded port and 8mm inlet port to slot easily into your pneumatic system
• Nominal tightening torque of 3Nm achieves a secure fix
• Performs reliably in a wide operating temperature range between -10°C and +60°C

Applications

• Agricultural equipment
• Automotive manufacturing
• Textile industry

How do I adjust the exhaust valve?

This valve can be manually adjusted using the knurled screw. Its oversized, textured head gives you a firm grip for easy handling.
