GRLA-3/8-QS-8-D, Festo GRLA Series Tube Exhaust Valve, 8mm Tube Inlet Port x G 3/8 Outlet Port, 193150

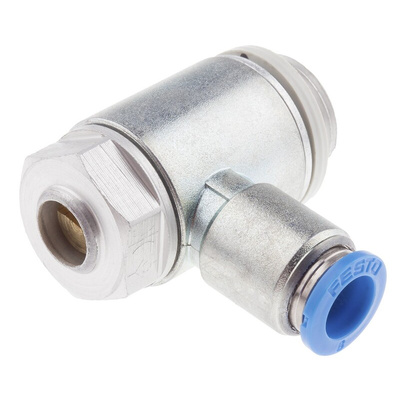

Festo Exhaust Valve, G3/8 Outlet Port, Aluminium Alloy Body - GRLA-3/8-QS-8-D

For consistent control over your pneumatic flow, turn to this one-way exhaust valve from Festo. It fits neatly into an existing system, thanks to an 8mm inlet port and a G3/8 male threaded outlet. Simply push your tube into the inlet port to achieve a speedy and secure connection. You can use the valve to restrict compressed air speed as needed to suit piston movements. All you need is a slotted-head screwdriver to adjust the valve manually and get the settings just right.

Features & Benefits

• Sturdy aluminium alloy body and brass adjusting screw stand up to corrosion
• Broad operating temperature range between -10°C and +60°C means it works reliably in harsh environments
• Nominal tightening torque of 10Nm indicates it's strong enough to withstand demanding applications
• Nominal flow rate of 820L/min makes it suitable for use with high-speed piston movements
• Maximum operating pressure of 10 bar means it performs safely in industrial systems

Applications

• Pharmaceutical production
• Aerospace engineering
• Food and beverage packaging

How much does this exhaust valve weigh?

The unit weighs just 60g, which means it won't put much extra strain on your setup.
