GRLZ-M5-QS-4-D, Festo GRLZ Series Tube Flow Regulator, 4mm Tube Inlet Port, 193154

Festo GRLZ Series Flow Regulator, 4 mm Tube Inlet Port - GRLZ Series - GRLZ-M5-QS-4-D

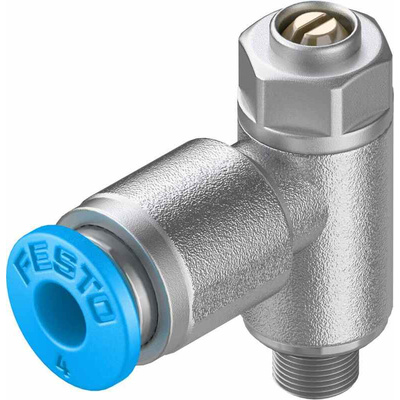

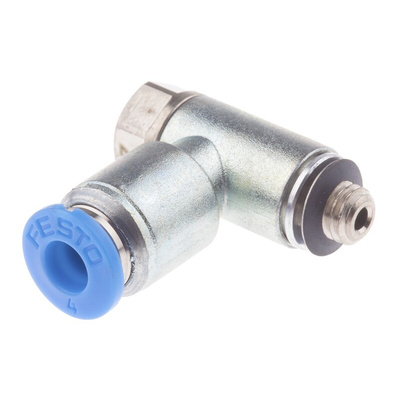

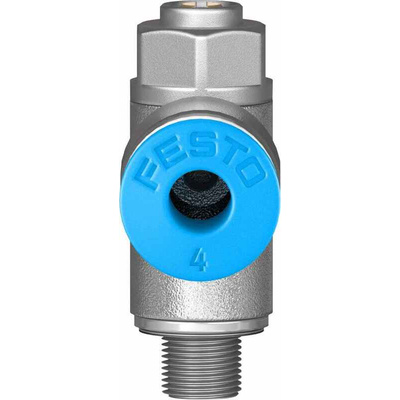

This flow regulator from Festo can be used when building pneumatic systems, to regulate flow rates for either the advance or return stroke of a cylinder. Set the flow for slow, medium or fast piston movement using the slotted head screw. The regulator is quick and easy to mount, with one threaded connection and a tube inlet with a push-in fitting. Made from corrosion-resistant brass, it's robust and reliable, meaning it can be used in challenging factory and engineering environments.

• Brass body material
• Tube inlet port of 4 mm
• Threaded outlet thread size of 5 mm
• Metric threaded outlet thread standard
• Threaded outlet port type
• Male threaded outlet thread
• Flow controller type
• Standard nominal flow rate in flow control direction of 110 l/min
• Standard nominal flow rate in non-return direction of 65-110 l/min
• Operating temperature of -10˚C to +60˚C
• Operating pressure of 0.2 bar to 10 bar
• Nitrile rubber seals
• Weight of 13 g

Range Information

• Flow regulators in Festo's GRLZ S series are simple and quick to mount
• They feature a one-direction, non-return function
• Coupling and uncoupling are efficient thanks to the threaded and push-in fittings
