JMFH-5-1/4, Festo 5/2 Pneumatic Solenoid Valve - Solenoid/Pilot G 1/4 JMFH Series 48 V dc, 240 V ac, 10410, Клапан

JMFH Series Solenoid Valves

The JMFH series of double solenoid valves are part of the Tiger Classic range and are ideal for use in pneumatic applications. These highly durable valves are available with 5/2 way function in a range of G thread pipe sizes, depending on the connection you require. They can be mounted on PAL manifold strips or on PRS manifold blocks.

Features and Benefits

• Double solenoid, for F solenoid coil
• Maximum operating pressure of 8 bar
• 5/2 way valve
• Internal pilot air supply
• Operating temperature range of -5 to 40 °C
• IP65 protection rating
• Electrical actuation
• Sturdy and reliable
• Aluminium housing
• Highly durable poppet seat design
• Optimised response times
• Easily interchangeable solenoid coils

Note

The F solenoid coil needs to be ordered separately.

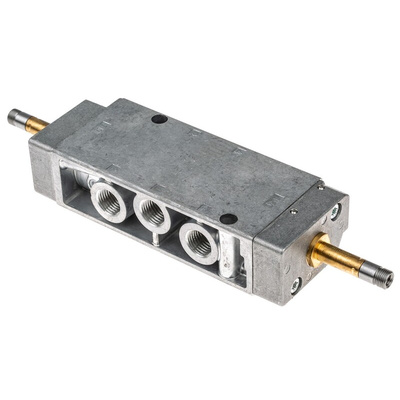

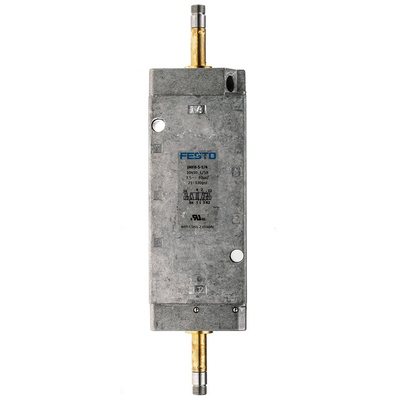

Festo JMFH-5-1/4 Solenoid Valve

The JMFH-5-1/4 from Festo is a double solenoid valve, with a highly durable poppet valve concept. The optional mounting types make it easy to use for a variety of pneumatic connections.

• 5/2 bistable valve function
• G1/4 pneumatic connection
• Electrical actuation
• Mounted through holes in the housing or on manifold rail
• Low corrosion resistance of 1

Festo Tiger Classic

JMFH-5-1/4 Specification Sheet
