DSNU-20-250-P-A, Festo Pneumatic Cylinder - 19216, 20mm Bore, 250mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

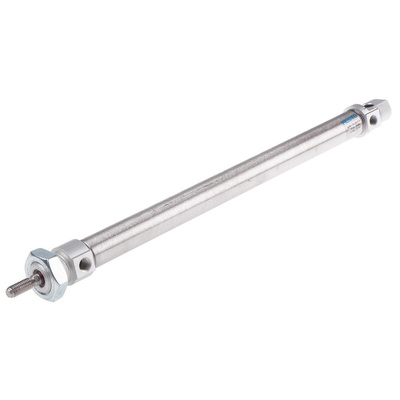

Festo Pneumatic Cylinder, Stainless Steel Piston Rod, 250mm Stroke - DSNU-20-250-P-A

Move small parts with precision using this pneumatic cylinder from Festo. The 10mm-stroke unit has a simple three-component design to give you optimal performance in the long term. Elastomer cushioning at both ends makes this type of cylinder an ideal option for moving small loads at low speeds. The cushioning absorbs the impact of the piston to minimise shock and impact stress on your system. As you won't need to worry about making adjustments, you're free to focus on other tasks.

Features & Benefits

• Double-acting cyclinder gives you control over the stroke in both directions
• Stainless steel piston rod resists corrosion for smooth running and a long service life
• Safe to use in harsh industrial settings, thanks to an operating temperature range of -20°C to +80°C

Applications

• Factory automation
• Powder coating
• Silk-screen printing

What types of cushioning do pneumatic cylinders have?

Pneumatic cylinders generally come with mechanical or adjustable cushioning. This cylinder has mechanical cushioning, which uses elastomers to absorb the impact of the piston at both ends. It's a simple and effective option for short strokes, low speeds and light loads. Adjustable pneumatic cushioning offers greater shock absorption than mechanical cushioning and can be manually altered to suit your needs.
