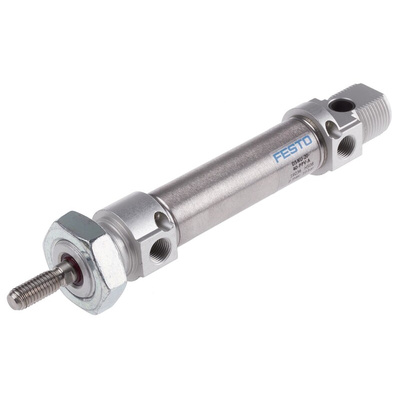

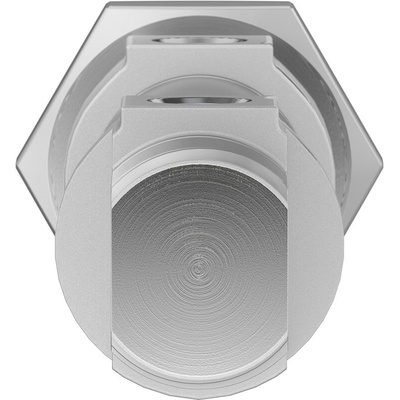

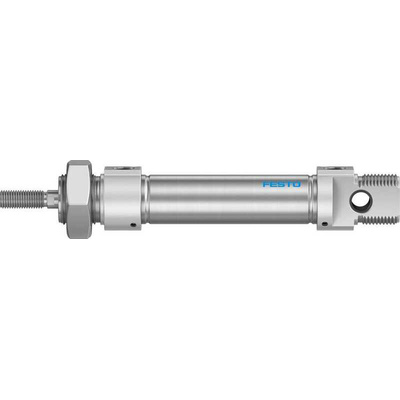

DSNU-20-40-PPV-A, Festo Pneumatic Cylinder - 19236, 20mm Bore, 40mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Cylinder, G1/8 Port Connection, 1 to 10 Bar Operating Pressure - DSNU-20-40-PPV-A

Wondering how to automatically eject small components? Try this pneumatic piston rod cylinder from Festo. Its short stroke length of 40mm is just what you need for positioning miniature items. With a compact overall length of 172mm, you can count on this unit to help you downsize machinery. Adjustable cushioning at both ends of the actuator barrel means you can set the cylinder to absorb just the right amount of energy for your application.

Features & Benefits

• Wide ambient temperature range between -20°C and +80°C for compatibility with challenging settings
• Nitrile rubber seals maintain their shape under high pressure, giving you reliability
• Stainless steel piston rod that withstands wear and corrosion for longevity in harsh locations
• Low friction offers optimal pneumatic performance

Applications

• Medical and pharmaceutical industries
• Mining and minerals processing
• Automated assembly lines
• Textile industry

What's the operating pressure range of this pneumatic cylinder?

The cylinder has a broad operating pressure range between 1 and 10 bar, so it's a good match for standard pneumatic circuits.

Can I use this cylinder with lubricated compressed air?

Yes, for versatility the component is compatible with either lubricated or non-lubricated pneumatic circuits.
