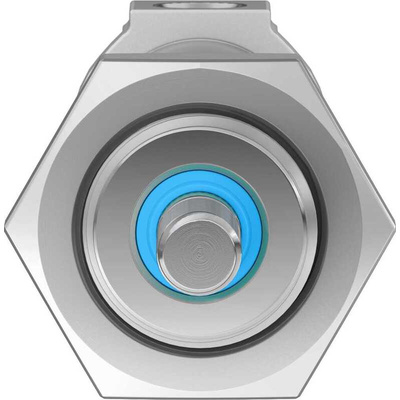

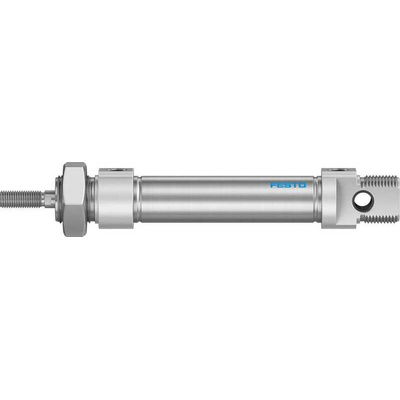

DSNU-20-50-PPS-A, Festo Pneumatic Cylinder - 559273, 20mm Bore, 50mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Cylinder, G1/8 Threaded Ports, PPS Self-Adjusting Cushioning - DSNU-20-50-PPS-A

When the job calls for smooth bidirectional piston movements in your pressurised network, pick this pneumatic cylinder from Festo. Its double-action mechanism means compressed media moves the 20mm-bore piston rod a distance of up to 50mm in both directions. You can trust it's up to the challenge of heavy-duty machinery, as it can shift up to 188.5N on its advance stroke and 158.3N on its return. The unit's self-adjusting PPS-type cushioning provides optimal end-range protection when it's running at high speeds and with substantial loads. This also means there's no need for manual modification.

Features & Benefits

• Standard G1/8 threaded ports give broad compatibility
• Works across an extensive temperature range of -20°C and +80°C, making it a great shout in challenging environments
• M8 piston rod thread lets you attach accessories for specialist applications

Applications

• Automotive manufacture
• Industrial automation
• Production lines

How durable is the unit?

As this cylinder is made of hard-wearing steel and wrought aluminium alloy, you can rest assured it's a robust choice. These materials make it suitable for use in demanding settings and give it impact resistance and durability in the face of moderate corrosion stress.

Festo DSNU/DSNUP/DSN/ESNU/ESN

Festo Pneumatic Cylinders Operating Manual

DSNU-20-50-PPS-A Specification Sheet

Brochure - Simply Part of the Solution

Instruction Sheet - Round Cylinder
