DSNU-20-80-PPV-A, Festo Pneumatic Cylinder - 19238, 20mm Bore, 80mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

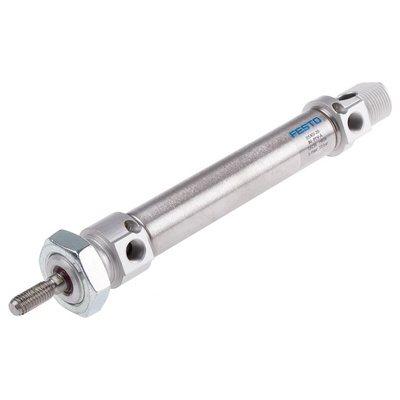

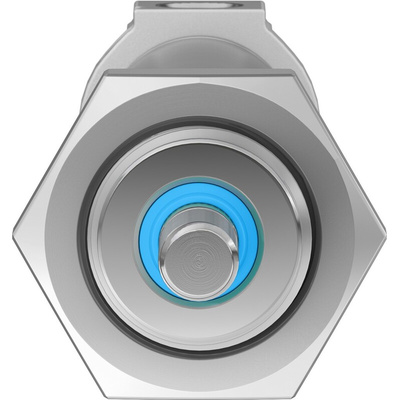

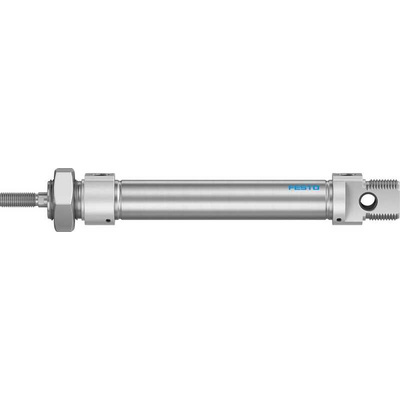

Festo Pneumatic Cylinder, Single-Ended Piston Rod, 212mm Overall Length - DSNU-20-80-PPV-A

Pick and place with precision using this Festo pneumatic cylinder. A constant output force through its entire stroke makes it just what you need for accurate automated positioning tasks. Air cushioning on each end of its piston rod helps to increase its lifespan, as it minimises the impact of shock and vibration. The cylinder rod and piston barrel are made from high-alloy steel to resist corrosion. This flexible unit can be mounted in position, so you can install it as necessary to meet the needs of your pneumatic circuit.

Features & Benefits

• Nitrile rubber seals withstand high pressure of up to 10 bar for use in demanding pneumatic circuits
• Broad operating temperature range between -20°C and +80°C to handle extreme settings
• Tough wrought aluminium alloy cover to resist wear and abrasion, offering an extended service life

Applications

• Medical and pharmaceutical industries
• Mining and minerals processing
• Agricultural machinery

How big is this pneumatic cylinder?

The component has a length of 212mm and a diameter of 27mm. Its compact size means you can downsize on equipment, reducing power consumption and increasing efficiency.
