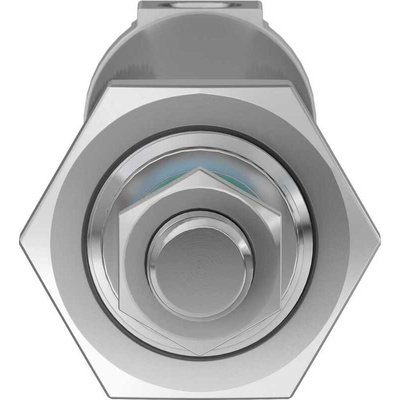

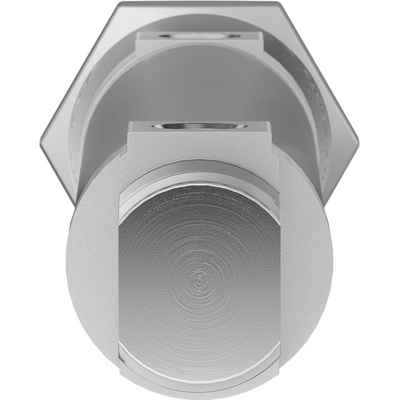

DSNU-25-100-PPS-A, Festo Pneumatic Cylinder - 559286, 25mm Bore, 100mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Cylinder, Male Piston Rod Thread, 1 to 10 Bar Operating Pressure - DSNU-25-100-PPS-A

Keep moving parts rolling along with the help of this double-action pneumatic cylinder from Festo. It efficiently converts compressed air into smooth, linear motion and delivers a powerful 100mm stroke length. As the unit comes with self-adjusting pneumatic cushioning at both ends, there's no need to fiddle about with manual adjustments. Instead, the cushioning gently guides the piston into the correct position to cut down on wear and set-up time. This cylinder is built to last, thanks to a wrought aluminium alloy cover that's reliably strong.

Features & Benefits

• High-alloy steel piston rod and barrel resist corrosion for use in humid conditions
• Versatile option with an operating pressure range between 1 and 10 bar
• Performs in harsh environments, as it can handle broad operating temperatures from -20°C to +80°C
• Standard G1/8 pneumatic connection provides wide compatibility

Applications

• Automated assembly lines
• Electronics manufacturing
• Hoisting equipment

What force does this pneumatic cylinder deliver?

At a pressure of 6 bar, the component performs with a theoretical force of 247.4N on its return strokes and 294.5N on its advance strokes. This makes it strong enough for use with heavy-duty applications.
