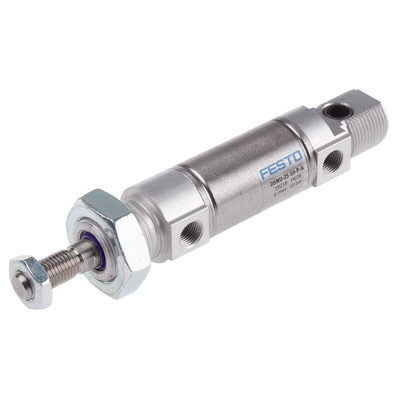

DSNU-25-10-P-A, Festo Pneumatic Cylinder - 19218, 25mm Bore, 10mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Cylinder, G1/8 Port Connection, 247.4N Return Stroke Force - DSNU-25-10-P-A

Get loads moving in your industrial setup with this pneumatic cylinder from Festo. It's a double-acting unit, meaning compressed air alternates through its two ports to push its piston forward and back. This makes it useful for operations such as the opening and closing of gates. Thanks to its anodised wrought aluminium alloy body, this component holds its own against impact and corrosion, making it a suitable choice for rugged industrial environments. As you can assemble it in any position, this is a flexible option.

Features & Benefits

• Safe to use in tough conditions, thanks to an operating temperature range of -20°C to +80°C
• G1/8 threaded port for widely compatible installation
• Light weight of 238g, so it doesn't put unnecessary strain on your setup
• Broad operating pressure range between 1 and 10 bar for versatile use

Applications

• Food processing industry
• Robotics systems and factory automation
• Oil and gas plants

Can I use a lubricant with this pneumatic cylinder?

Yes, the device can be lubricated. If you lubricate it once, you'll need to continue lubricating it for all subsequent use.
