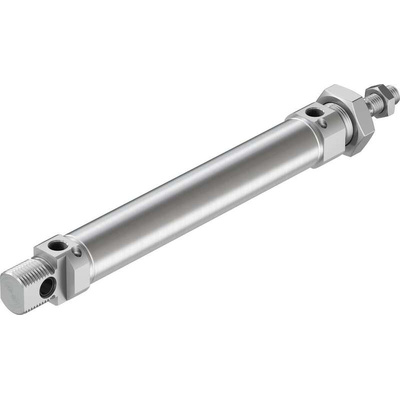

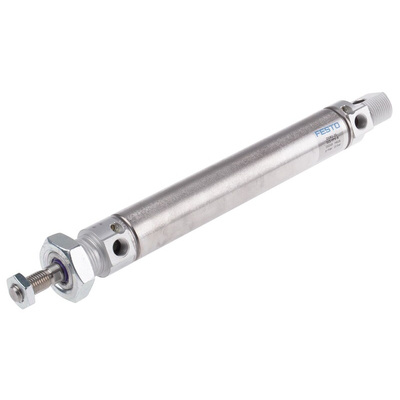

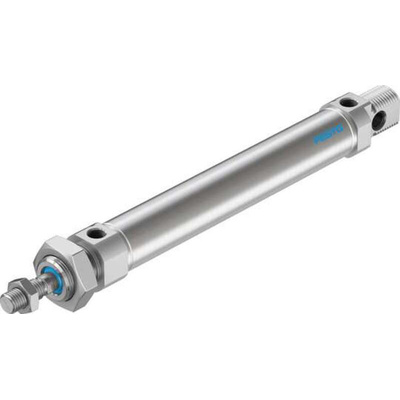

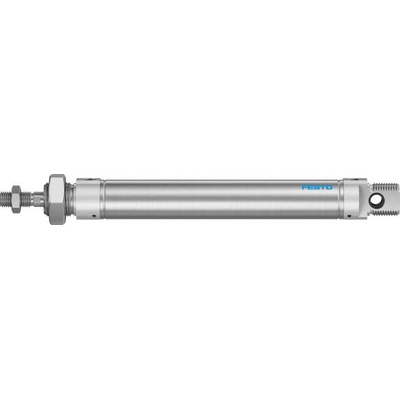

DSNU-25-125-PPV-A, Festo Pneumatic Cylinder - 19249, 25mm Bore, 125mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Cylinder, Air Cushioning Type, Stainless Steel Material - DSNU-25-125-PPV-A

For precise control when handling small components, trust this pneumatic cylinder from Festo for accuracy. It's a double-acting type that gives you control over the stroke in both directions for versatility. As an extension to the main piston, a special padded piston gives you adjustable air cushioning at both ends, meaning you can efficiently calibrate your system to minimise shock and vibration. Widely compatible G1/8 connections make this an easy option to link up to your pneumatic system.

Features & Benefits

• High alloy stainless steel cylinder and rod resist corrosion for longevity in damp conditions
• Broad operating temperature range of -20°C to +80°C makes it suitable for use in challenging industrial settings
• Light weight of 375.5g so it won't put unnecessary strain on your setup
• 27mm diameter and 266.5mm length make this a compact option to save system space
• 10 bar maximum operating pressure for versatility

Applications

• Packaging plants
• Factory automation
• Transport industry

What position does this pneumatic cylinder need to be mounted in?

For flexibility, the unit can be mounted in any position without loss of performance.
