DSNU-25-150-P-A, Festo Pneumatic Cylinder - 1908311, 25mm Bore, 150mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

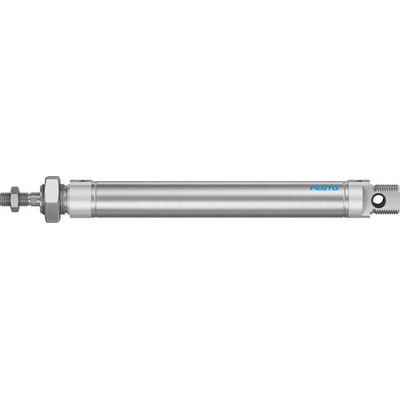

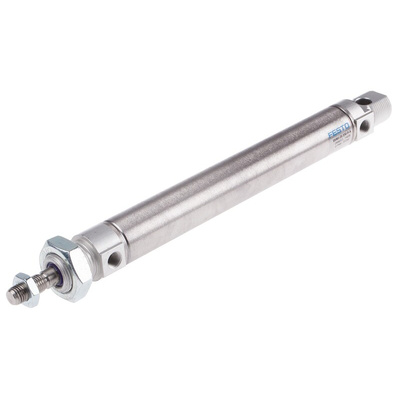

Festo Pneumatic Cylinder, Elastomer Cushioning Type, Single Rod - DSNU-25-150-P-A

Handle small components with precision using this pneumatic cylinder from Festo. It's a double-acting device, so it moves smoothly in both directions through an accurate stroke length of 150mm. The unit's fitted with protective cushioning rings at each end of the piston to absorb energy and prevent shock or vibration from interfering with the workings of your system. It can be mounted in just about any position for flexibility. The G1/8 pneumatic connections give it wide compatibility with your system.

Features & Benefits

• Operating temperature range of -20°C to +80°C for use in challenging industrial conditions
• Stainless steel construction resists abrasion
• Compact dimensions of 291.5 (L) x 27mm (D) to save space in busy setups
• Tips the scales at 403g, so it doesn't put any unnecessary strain on your system

Applications

• Packaging plants
• Materials handling
• Production lines

What's the benefit of this cylinder's elastomer cushioning?

The flexible elastomer cushioning rings act as built-in shock absorbers. They're sufficient for handling small loads moving at low speeds and, as they're integrated, help you to build a simpler system than one that uses pneumatic cushioning.
