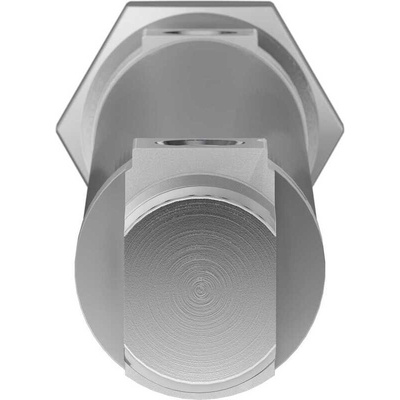

DSNU-25-150-PPV-A, Festo Pneumatic Cylinder - 1908319, 25mm Bore, 150mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Cylinder, PPV Cushioning, 1 to 10 Bar Operating Pressure - DSNU-25-150-PPV-A

Need a hand moving loads in your industrial equipment? Choose this pneumatic cylinder from Festo. Thanks to a stroke length of 150mm, it's an effective choice for long-range operations such as material lifting. The unit's wrought aluminium alloy housing is durable and withstands wear from impact and corrosion, so you can depend on it for long-term performance in harsh environments. A wide operating pressure range between 1 and 10 bar makes it a versatile choice.

Features & Benefits

• Widely compatible G1/8 threaded port for simple and time-saving installation
• NBR and TPE-U(PU) seals block out dust and contaminants to ensure optimal performance
• Performs reliably in temperatures between -20°C and +80°C
• Compatible with proximity sensors for automated operation

Applications

• Material handling equipment
• Aerospace industry
• Water treatment plants

What's the difference between a single-acting and double-acting cylinder?

A single-acting component has only one port. Compressed air drives its piston's forward movement and a spring retracts it. A double-acting cylinder, like this one, has two ports, giving you control of the forward and reverse motion of its piston.
