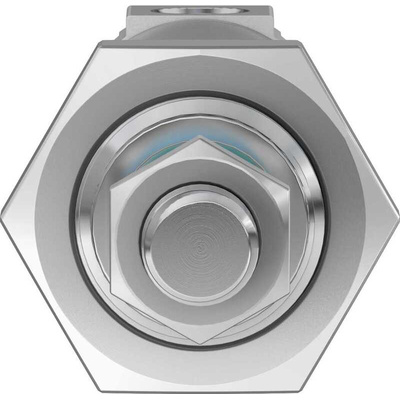

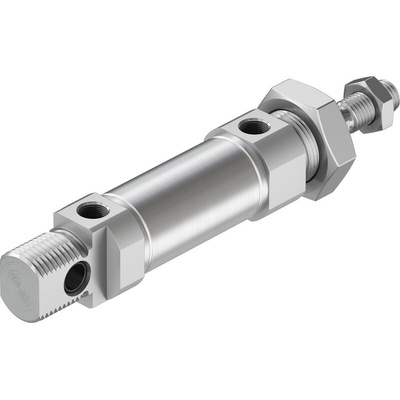

DSNU-25-15-P-A, Festo Pneumatic Cylinder - 1908305, 25mm Bore, 15mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Cylinder, Elastomer Cushioning, G1/8 Port Connection - DSNU-25-15-P-A

Keep your machinery on the right track using this pneumatic cylinder from Festo. Its piston rod slides back and forth, delivering a linear stroke of 15mm to support industrial processes in motion. The double-acting component features a G1/8 port at each end to take in compressed air and drive movement in both directions. Its rod and barrel are made from high-alloy steel to resist corrosion in humid environments. Integrated cushioning rings absorb shock to cut down on wear and boost stability.

Features & Benefits

• Performs dependably in temperatures between -20°C and +80°C
• Wide operating pressure range of 1 to 10 bar for versatility
• Can be assembled in any position for flexibility
• Light weight of 254.5g won't put a strain on your system
• Wrought aluminium alloy cover stands up to corrosion and abrasion to ensure a long service life

Applications

• Food and beverage production
• Packaging facilities
• Aerospace industry

What media can I use with the cylinder?

You can use lubricated or non-lubricated compressed air with this unit. Once you've started using a lubricated medium, you'll need to carry on lubricating for all operations afterwards.
