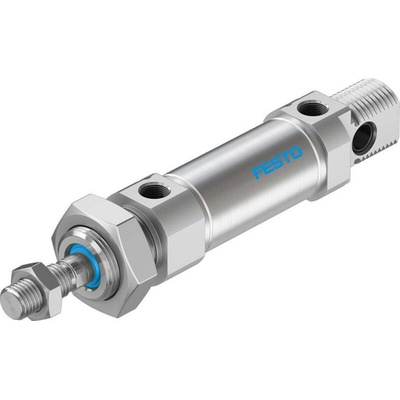

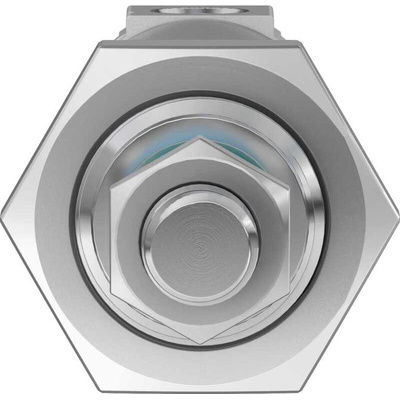

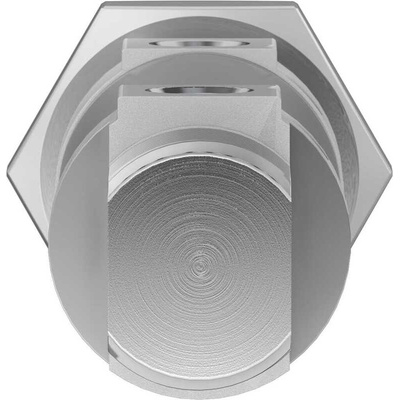

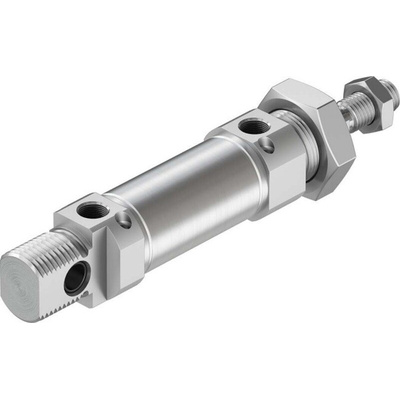

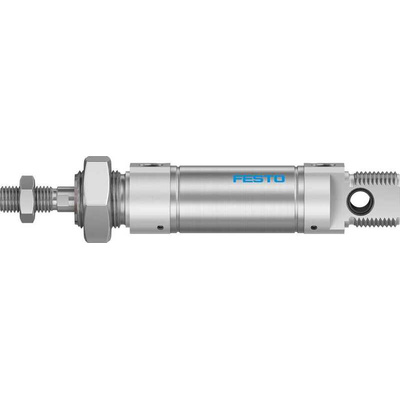

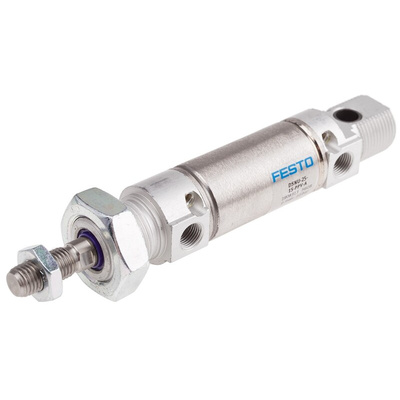

DSNU-25-15-PPV-A, Festo Pneumatic Cylinder - 1908313, 25mm Bore, 15mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Cylinder, Male Thread, G1/8 Port Connection - DSNU-25-15-PPV-A

Set your machinery in motion with this pneumatic cylinder from Festo. Compressed air flows in and out through two open ports and causes the piston rod to extend and retract. The result is reliable and accurate linear movement. As there's adjustable cushioning at both ends to soften the rod's blows, minimising noise, stress and vibration. Robust NBR and PU seals close the deal by keeping air from leaking out and maintaining system pressure.

Features & Benefits

• Compatible with horizontal or vertical mounting for flexible assembly
• Lubricated operation possible to reduce the risk of damage from friction
• Performs in challenging environments thanks to an operating temperature range between -20°C and +80°C
• High alloy steel construction resists corrosion in damp settings
• NBR seals shrug off degradation caused by oils and solvents, so stand up well to harsh conditions

Applications

• Mining and quarrying equipment
• Textile production
• Material handling
• Aerospace engineering
• Energy industry

How do I install this cylinder?

Thanks to the threaded design of its housing and piston, you can install this cylinder by inserting it into a G1/8 pneumatic connection, so there's no need for specialist tools.
