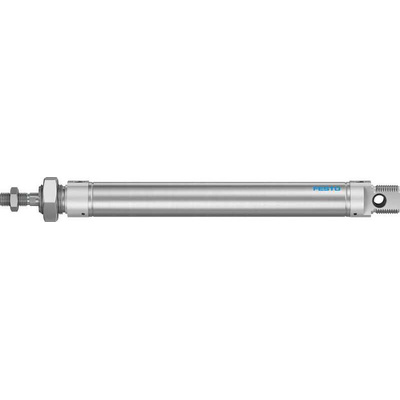

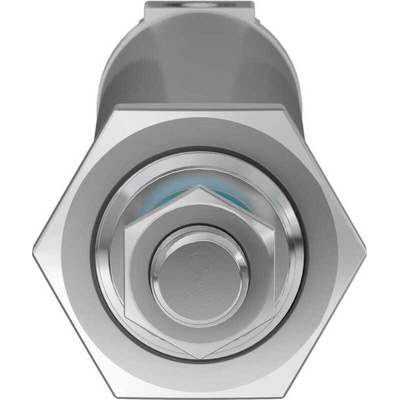

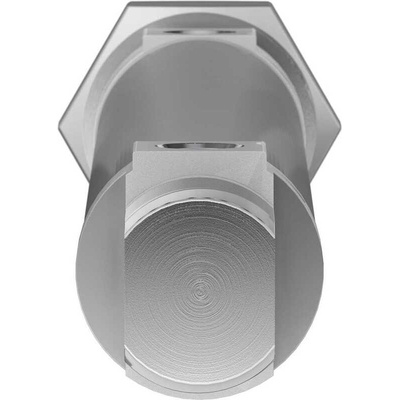

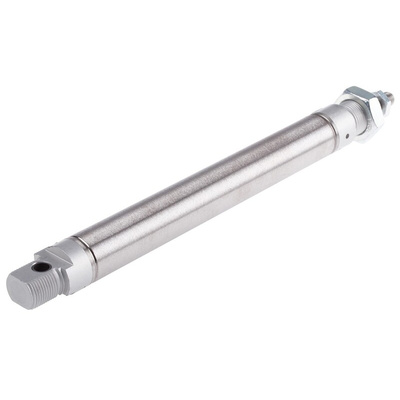

DSNU-25-160-PPV-A, Festo Pneumatic Piston Rod Cylinder - 19250, 25mm Bore, 160mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Piston Rod Cylinder, 294.5N Advance Stroke Force, 0.3J Impact Energy In End Positions - DSNU-25-160-PPV-A

Looking for a reliable workmate to push loads in the right direction? This pneumatic piston rod cylinder from Festo has got your back. As it's a double-acting unit, its piston's forward and backward movements are controlled by the force of compressed air pushed through its two ports. Thanks to an advance stroke force of 294.5N and return stroke force of 247.4N, this piece of kit is a practical choice for heavy-duty applications. You'll find installation is a piece of cake, as the cylinder comes with the widely compatible G1/8 threaded port.

Features & Benefits

• NBR and TPE-U(PU) seals keep out dust and contaminants to ensure optimal operation
• Operates in hazardous environments, thanks to a temperature range between -20°C and +80°C
• Light weight of 238g for easy handling
• Adjustable PPV cushioning at both ends reduces noise and vibration for efficiency

Applications

• Agricultural equipment
• Mining industry
• Food processing plants

In what position should I assemble this pneumatic piston rod cylinder?

You can mount this versatile component in any position your system calls for.
