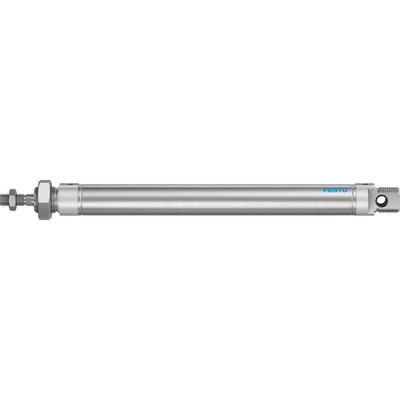

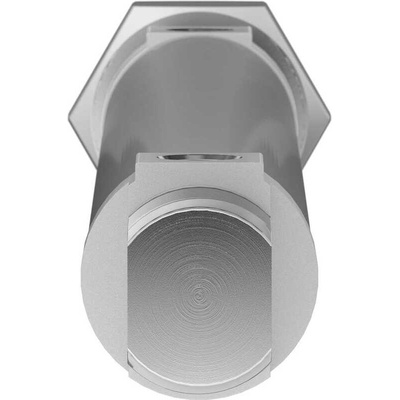

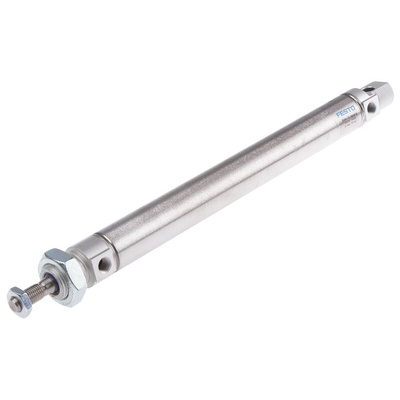

DSNU-25-200-P-A, Festo Pneumatic Cylinder - 19226, 25mm Bore, 200mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Cylinder, M10 Piston Rod Thread, Wrought Aluminium Alloy Construction - DSNU-25-200-P-A

Use this pneumatic cylinder from Festo in your air-controlled industrial equipment to get loads moving in the right direction. It's a double-acting device, so the forward and reverse thrust of its piston is controlled by compressed air pushing through its two ports. The cylinder's wrought aluminium alloy housing keeps it in shape to handle the impact and corrosion that come with harsh environments. Thanks to a return stroke force of 274.4N and advance stroke force of 294.5N, it's a sturdy choice for heavy-duty applications.

Features & Benefits

• Can be installed with a proximity sensor for automated operation
• Flexible cushioning rings and plates at both ends prevent noise and vibration for improved performance
• Mountable in any position for versatility
• G1/8 threaded port for simple, time-saving installation

Applications

• Measurement and instrumentation devices
• Robotics and automation systems
• Water treatment plants

What's the temperature tolerance of this pneumatic cylinder?

As the unit operates in a wide temperature range of -20°C to -80°C, you can trust it to work safely in demanding environments.

How much pressure can the cylinder withstand?

This product handles between 1 and 10 bar of input pressure, so you can use it with both low-pressure and high-pressure equipment.
