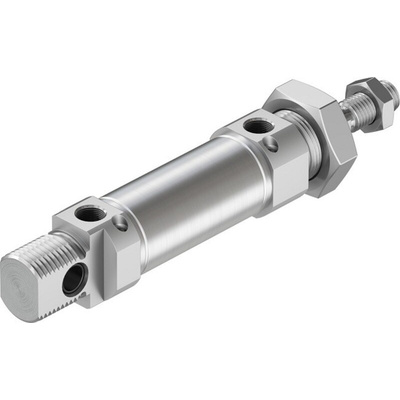

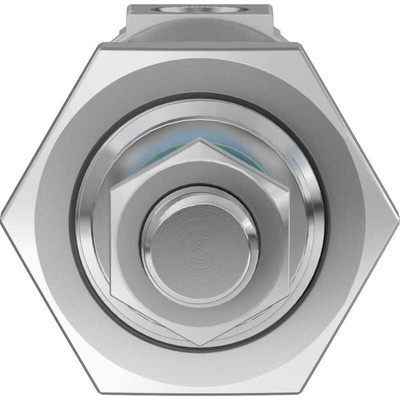

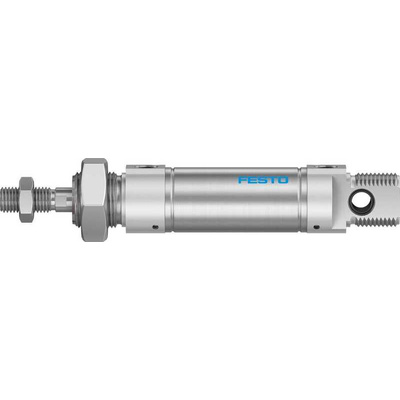

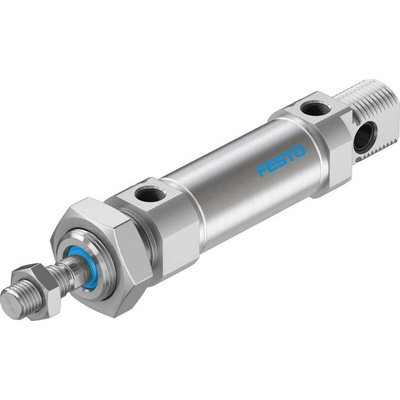

DSNU-25-20-PPV-A, Festo Pneumatic Cylinder - 1908314, 25mm Bore, 20mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Cylinder, Adjustable Cushioning, 20mm Stroke - DSNU-25-20-PPV-A

Turn the force of compressed air into motion with this pneumatic cylinder from Festo. It's a double-acting unit with an open port on each end to let air in and out. This pushes the piston rod in both directions, giving you reliable power and accurate extension. Robust adjustable cushioning puts up an air buffer to minimise the effect of impacts, protecting the piston from stress cracking. As it has a broad operating temperature range between -20°C and +80°C, you can trust this unit to stay steady and carry on, even in challenging settings.

Features & Benefits

• Can be lubricated for smoother movement
• NBR and TPE-U(PU) seals help prevent air leakage
• Threaded G1/8 pneumatic connection for hassle-free mounting

Applications

• Pharmaceutical industry
• Robotics systems
• Plastics production
• Chemical plants

What operating pressure range ofdoes this cylinder?

As it has an operating pressure range between 1 and 10 bar, it's a versatile option.

What's this cylinder made from?

The barrel and piston of this cylinder are both made from rugged high alloy steel that withstands impacts and corrosion, making it suitable for demanding operations.
