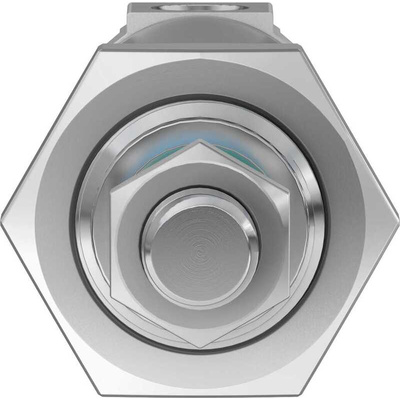

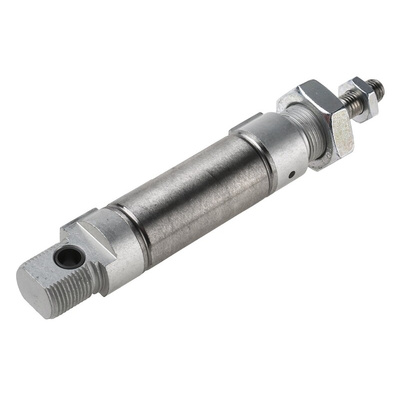

DSNU-25-25-P-A, Festo Pneumatic Piston Rod Cylinder - 19219, 25mm Bore, 25mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Piston Rod Cylinder, Stainless Steel Piston Rod, 1 to 10 Bar Operating Pressure - DSNU-25-25-P-A

Want help pushing loads around in your industrial system? Give things a nudge with this pneumatic piston rod cylinder from Festo. Compressed air drives it in both directions, for accuracy and efficiency. A durable wrought aluminium alloy body is on hand to shrug off corrosion and impact. As the unit's compact, with a length of 166.5mm and a diameter of 27mm, it's suitable for tight setups. To save time and hassle, this cylinder has a widely compatible G1/8 threaded port, meaning you don't need complex tools for installation.

Features & Benefits

• Flexible cushioning rings and plates at both ends prevent noise and vibration
• Light weight of 238g for easy handling during installation
• Operating temperature range between -20°C and +80°C, for safe use in challenging settings
• Stroke length of 25mm supports short-range movement
• Compatible with proximity sensors for automated control

Applications

• Pharmaceutical production plants
• Medical equipment
• Automotive industry

What do the seals on this pneumatic piston rod cylinder do?

The unit's NBR and TPE-U(PU) seals stop dust from contaminating the attached pneumatic system, ensuring everything ticks along smoothly.
