DSNU-25-25-PPV-A, Festo Pneumatic Cylinder - 33975, 25mm Bore, 25mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Cylinder, G1/8 Port Connection, 10 Bar Maximum Operating Pressure - DSNU-25-25-PPV-A

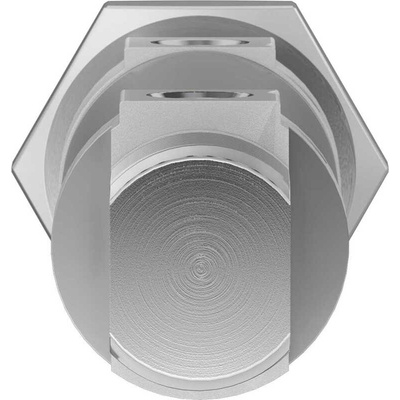

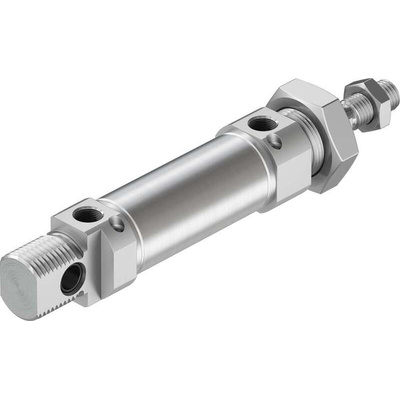

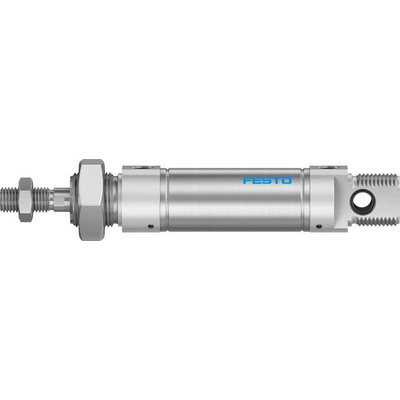

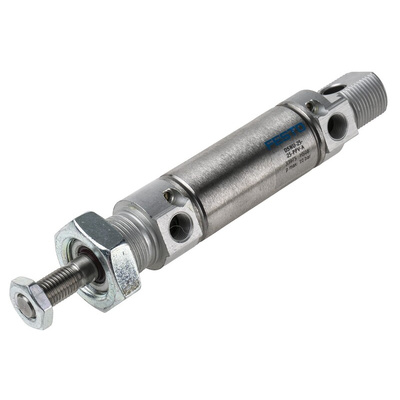

Get in position for placing and picking jobs with this Festo pneumatic cylinder. You'll have no trouble squeezing it into a tight space as it's a compact option with a round design and a piston diameter of 27mm. A short stroke of 25mm means it needs minimal room to manoeuvre. Thanks to its double-acting operation, the cylinder delivers controlled movement in both directions. There's adjustable air cushioning at each end to absorb the impact energy of heavy-duty and high-speed applications. It can handle forces between 247.4 and 294.5N at a 6 bar operating pressure. This means there's no need to compromise on strength when you're building compact machines.

Features & Benefits

• Performs reliably in environments that experience temperatures between -20°C and +80°C
• Metal rod enables position detection using a proximity sensor (such as 253-9246)
• Lubricated operation possible for system flexibility
• Standard G1/8 port size for wide compatibility

Applications

• Processing machines
• Packaging equipment
• Conveyors
• Robotics systems
• Presses and punches

Is this pneumatic cylinder durable?

Yes, it's made with an anodised wrought-aluminium alloy cover and a high-alloy stainless steel rod and barrel, so you can be sure it's hardwearing. Nitrile rubber and thermoplastic polyurethane seals also keep it leak free.
