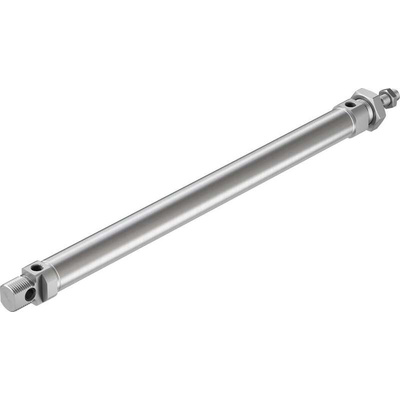

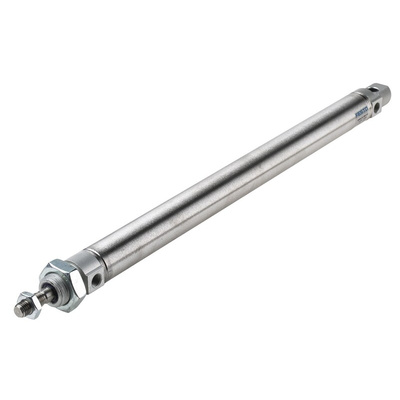

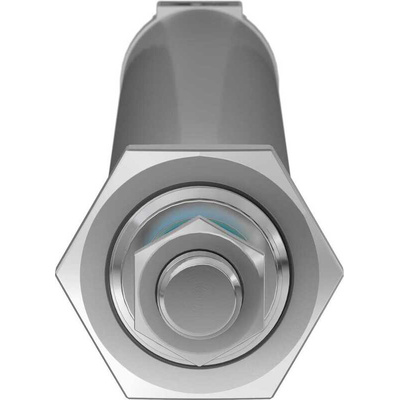

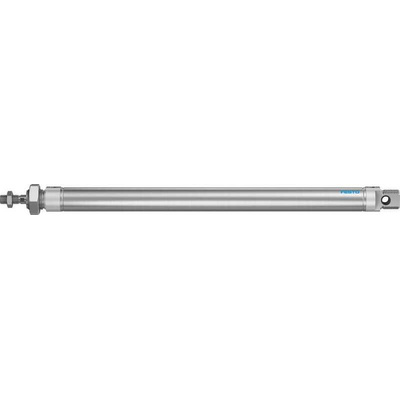

DSNU-25-300-P-A, Festo Pneumatic Cylinder - 19228, 25mm Bore, 300mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Cylinder, G1/8 Port Connection, Stainless Steel Construction - DSNU-25-300-P-A

To make light work of machine movement, get a helping hand from this Festo pneumatic piston rod cylinder. As a double-acting type, it uses compressed air to drive its piston 300mm in each direction, making it a practical pick for demanding industrial applications. Looking for numbers to show this cylinder's up to the challenge of moving involving heavy-duty machinery? It generates a force of 294.5N on its outstroke and 247.4N on its return stroke when working at 6 bar of pressure. Thanks to its air-blocking NBR and TPE-U seals and O-rings, you can expect reliable leak-free operation in the long term.

• Industry-standard M10x1.25 male thread lets you fix the piston securely to your equipment
• Flexible polymer cushioning dampens up to 0.3J of energy in end positions to prevent impact damage
• Anodised wrought aluminium cover resists impact and corrosion to protect the internal workings
• Versatile mounting options mean this product suits any assembly position

Applications

• Packaging machinery
• Transportation industry
• Car manufacture

Can I use a lubricant with this cylinder?

Yes, it's compatible with lubricant to help minimise friction.
