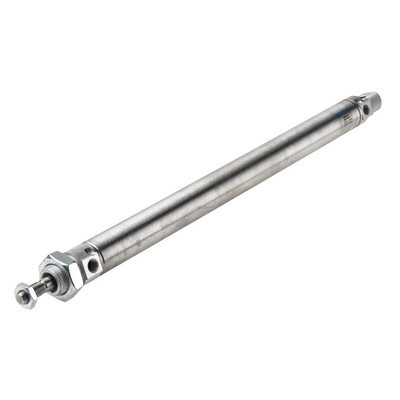

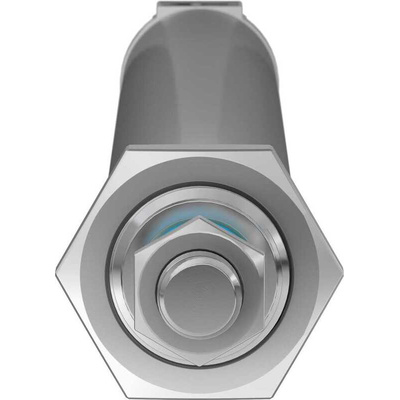

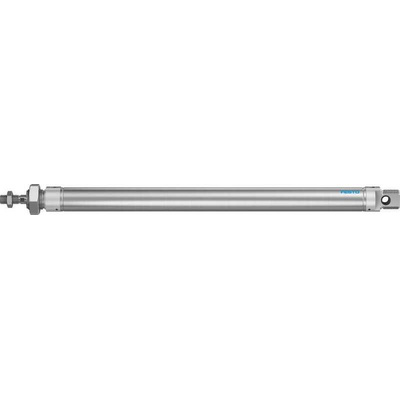

DSNU-25-300-PPV-A, Festo Pneumatic Cylinder - 19253, 25mm Bore, 300mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Cylinder, Air Cushioning Type, 10 Bar Maximum Operating Pressure - DSNU-25-300-PPV-A

Got tricky automation tasks to handle? Put this pneumatic cylinder from Festo in charge of the job. It's double acting, so it delivers controlled movement in both directions. This makes it suitable for picking and placing tasks. There's adjustable air cushioning at both ends, enabling you to tweak it to match the force of your application. The unit mounts in any position and has a single nut fixing, so it's easy to fit in machines and robotic arms. As it operates safely between 1 and 10 bar, it can handle the pressure of low-to-medium-power systems. This cylinder is a multitasking option you can pair with rod attachments (121-5547), proximity sensors (121-5836) and valves (121-4314).

Features & Benefits

• Nitrile rubber and thermoplastic seals keep it leak free
• Works with lubricated and unlubricated systems for convenience
• Made from wrought-aluminium alloy and high-alloy stainless steel for strength and durability
• Round cylinder shape with a 25mm diameter, so it's compact

Applications

• Food processing
• Automotive industry
• Packaging machines
• Conveying equipment

Can I use this pneumatic cylinder in hot manufacturing environments?

Yes, a wide operating temperature range between -20°C and +80°C, means you can use the device in demanding manufacturing and processing environments.
