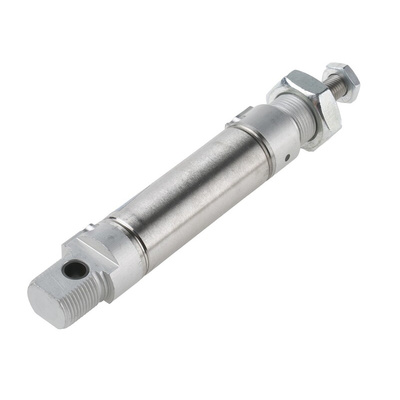

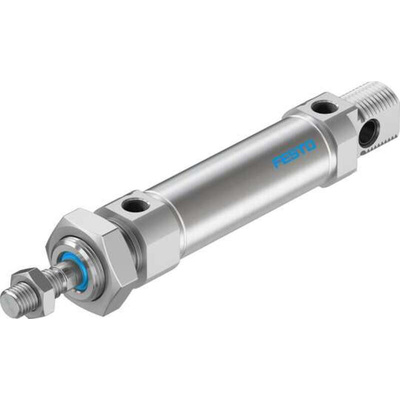

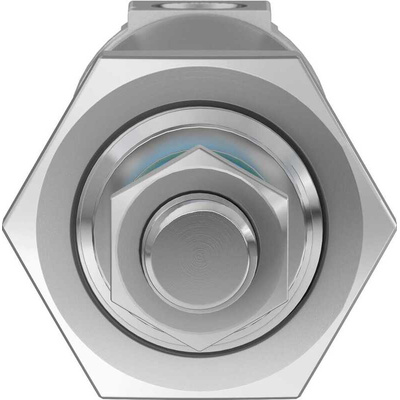

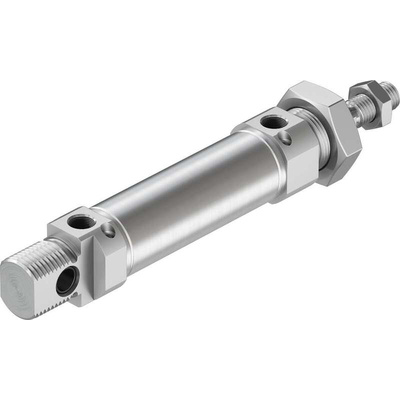

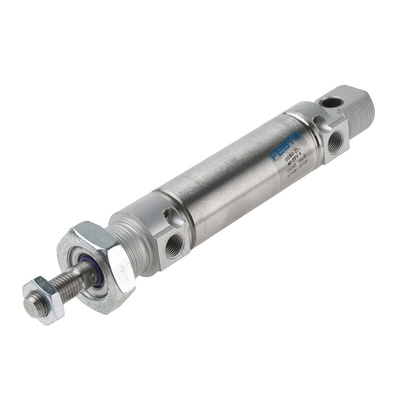

DSNU-25-40-PPV-A, Festo Pneumatic Piston Rod Cylinder - 19245, 25mm Bore, 40mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Piston Rod Cylinder, Stainless Steel Material, 10 Bar Maximum Operating Pressure - DSNU-25-40-PPV-A

Put small components precisely in their place with this pneumatic piston rod cylinder from Festo. The unit has widely compatible G1/8 connections, meaning you can hook it up to your pneumatic system with the minimum of hassle. It's double acting to give you control of the stroke in both directions. Pneumatic cushioning at each end means you won't need to worry about shock or vibration disrupting your system and as it's adjustable, you can keep your setup functioning at its best.

Features & Benefits

• Stainless steel construction resists corrosion
• Broad operating temperature range of -20°C to +80°C makes it suitable for use in hazardous industrial environments
• Can be mounted in almost any position for flexibility

Applications

• Packaging and fulfilment facilities
• Transportation industry
• Factory automation

How does this cylinder's adjustable pneumatic cushioning work?

This type of cushioning lets you decide the exact amount of air your process needs to be trapped in the end chamber of the cylinder. You can set this by taking into account variables such as the speed at which the piston is moving, the working pressure of the system and the resistance in the cylinder.

Festo DSNU/DSNUP/DSN/ESNU/ESN

Festo Pneumatic Cylinders Operating Manual

DSNU-25-40-PPV-A Specification Sheet

Instruction Sheet - DSNU Series
