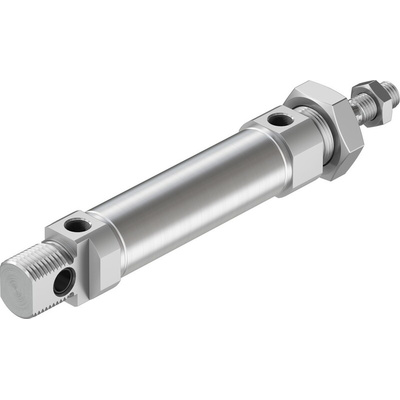

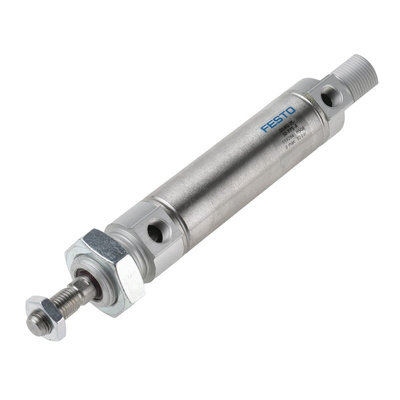

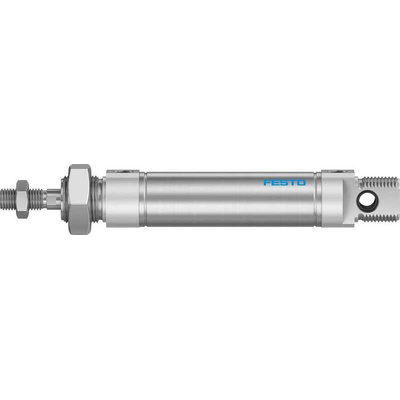

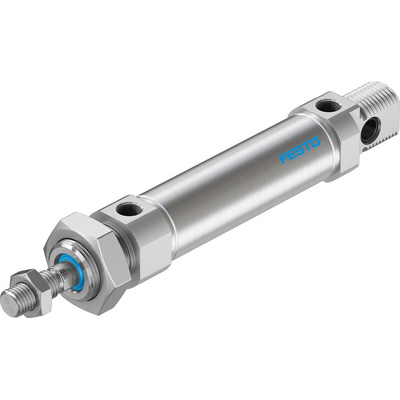

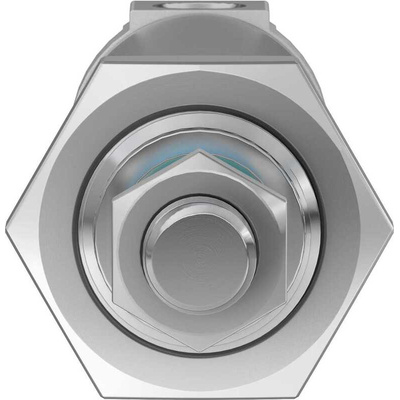

DSNU-25-50-PPS-A, Festo Pneumatic Cylinder - 559284, 25mm Bore, 50mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Cylinder, Self-Adjusting Cushioning, 191.5mm Length - DSNU-25-50-PPS-A

When you need to keep assembly tasks up to speed, turn to this pneumatic cylinder from Festo. As it's double-acting, it takes in compressed air from a port at each end, which moves its piston back and forth in a linear direction. Thanks to self-adjusting cushioning, the unit keeps up with changing loads and speeds to save you time and effort. The cylinder resists corrosion, thanks to its high-alloy piston rod and barrel. This makes it a reliable choice for humid industrial conditions.

Features & Benefits

• Sturdy cover is made from wrought aluminium alloy for an extended lifespan
• 50mm stroke for accurate reach
• Light 293g weight means it won't put unnecessary strain on your setup
• Wide operating pressure range between 1 and 10 bar makes it suitable to use with heavy-duty machinery

Applications

• Textile industry
• Storage facilities and warehouses
• Pulp and paper mills

What temperature tolerance does this device have?

The cylinder performs effectively in demanding environments as it copes with operating temperatures between -20°C and +80°C.

What operating medium can I use this cylinder with?

For versatility, this cylinder is compatible with compressed air that's either lubricated or non-lubricated.

Festo DSNU/DSNUP/DSN/ESNU/ESN

Festo Pneumatic Cylinders Operating Manual

DSNU-25-50-PPS-A Specification Sheet

Brochure - Simply Part of the Solution

Instruction Sheet - Round Cylinder
