DSNU-25-60-P-A, Festo Pneumatic Cylinder - 1908309, 25mm Bore, 60mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

DSNU Series Roundline Cylinders - Flexible Cushioning

Festo DSNU series round pneumatic cylinders with flexible cushioning rings at both ends of the actuator barrel. Featuring a stainless steel piston rod within a 3 component system that provides excellent running performance and long service life. These double acting pneumatic actuators have dual connection ports for compressed air to be applied for advancing and retracting the piston rod in a linear motion. An extensive range of accessories makes it possible to install the DSNU cylinders virtually anywhere.

Flexible Cushioning

The DSNU P type flexible cushioning pneumatic cylinders absorb energy directly via flexible cushioning rings which are integrated into the main piston. This energy absorbing method makes these cylinders ideal for small load and low speed applications.

Features and Benefits

Conforms to ISO 6432 providing standardised metric mounting dimensions
Stainless steel piston rod with threaded connector
Wide range of stroke length and bore size variants that can be configured to suit a broad range of applications.
Long service life
Double acting operation

How do I mount the pneumatic cylinder?

The DSNU series pneumatic round actuators conform to ISO 6432 standards allowing them to be mounted in any position to suit the required application. The ISO 6432 standard establishes metric mounting dimensions for cylinders providing interchangeability of commonly used hydraulic and pneumatic cylinders. Optional mounting accessories provide further flexibility allowing the cylinder to be attached with a swivel bracket for free movement, foot mounted for support under high loads or combined with other actuators to give a wider range of movement.

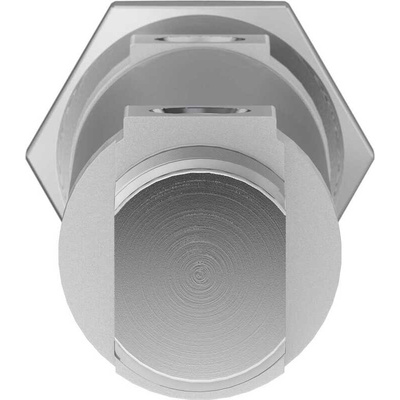

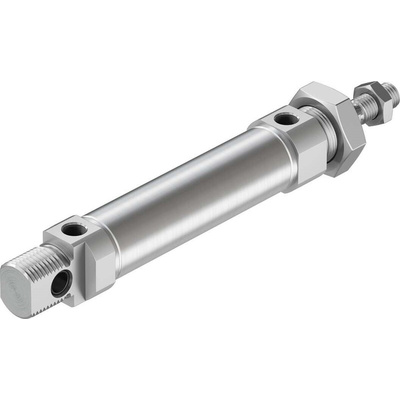

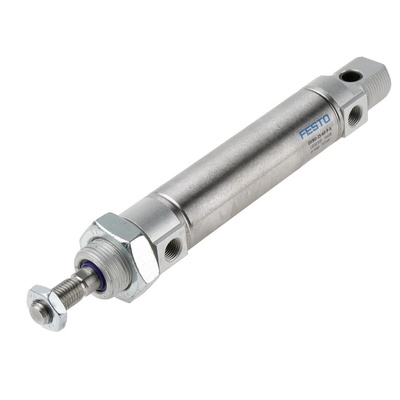

Festo Pneumatic Cylinder, 60mm Stroke, 25mm Piston Diameter - DSNU-25-60-P-A

When accuracy is at the top of your priority list, opt for this pneumatic cylinder from Festo. As a double-acting unit with a port at each end, it gives you control over the stroke in both directions. Both the piston rod and cylinder are made from high-alloy steel, which combines strength with corrosion resistance to give you a long service life. A wide operating temperature range of -20°C to +80°C means you can be sure of reliable performance even when the going gets tough.

Features & Benefits

• Stroke length of 60mm gives it good reach
• Nitrile rubber seals prevent leaks and keep out dust particles to help your system run efficiently
• Single-rod construction makes for a simple and effective design
• Can be mounted in any position to help you build a custom setup

Applications

• Recycling sector
• Oil and gas industries
• Factory automation

Do I need to adjust the cushioning on this pneumatic cylinder?

This pneumatic cylinder is fitted with mechanical cushioning, which you don't need to adjust. An elastomer ring absorbs the shock at the end of each stroke. This kind of cushioning is effective for relatively light loads and slow stroke speeds.
