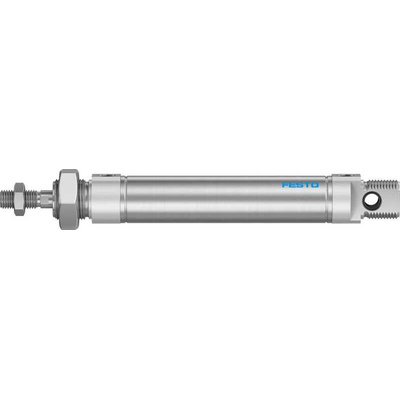

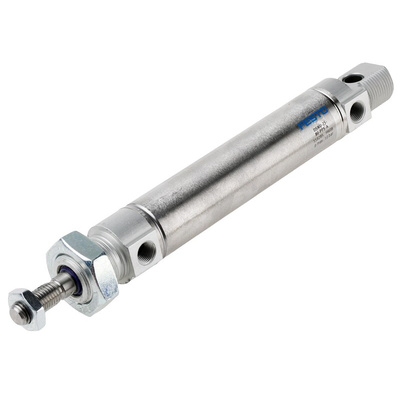

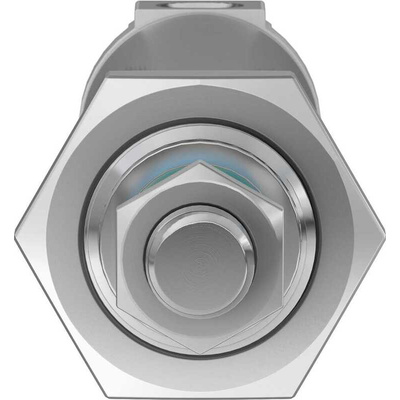

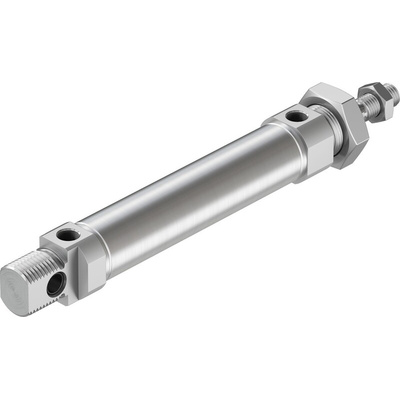

DSNU-25-80-PPS-A, Festo Pneumatic Cylinder - 559285, 25mm Bore, 80mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Cylinder, G1/8 Port Connection, Stainless Steel Piston Rod - DSNU-25-80-PPS-A

Keep your system running smoothly with this pneumatic cylinder from Festo. As a double-acting device, it has a port at each end to take in compressed media, which gives you control of the stroke in both directions. Self-adjusting air cushioning uses a special piston in addition to the main one to vent the air cushion. This saves you time and effort while guarding your set-up against shock and vibration. The piston rod and cylinder barrel are made from high-alloy steel to stand up to corrosion and give you a long service life.

Features & Benefits

• Safe to use in demanding settings, thanks to an operating temperature range between -20°C and +80°C
• Wide operating pressure between 1 and 10 bar for flexible use
• 80mm stroke makes it ideal for short-range movement

Applications

• Automated assembly lines
• Agricultural machinery
• Material handling

How does self-adjusting air cushioning work?

This type of cushioning automatically regulates the damping in pneumatic cylinders and prevents shock and vibration caused by the back-and-forth motion of the piston. The air cushioning adjusts automatically in response to varying loads and speeds, keeping motion smooth and controlled without the need for manual tweaks.
