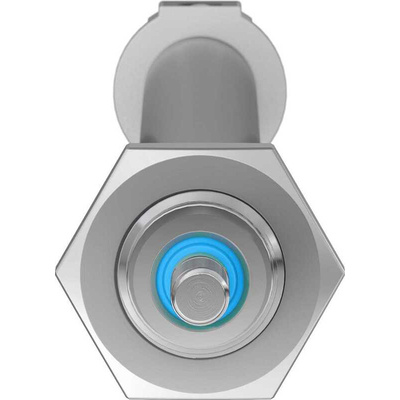

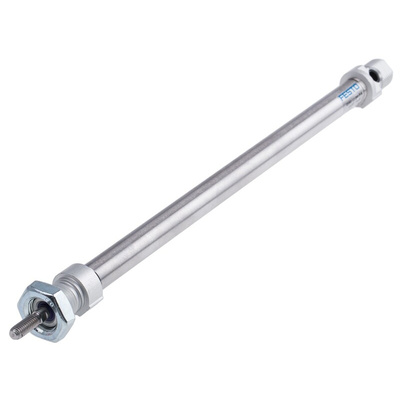

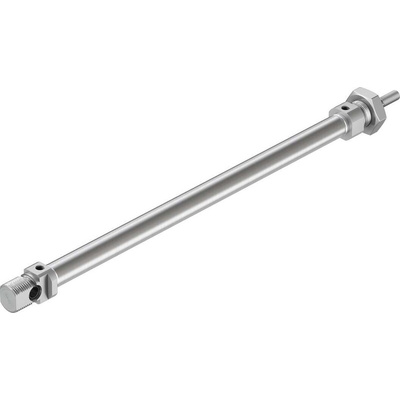

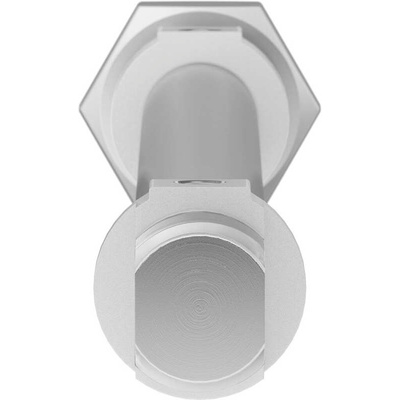

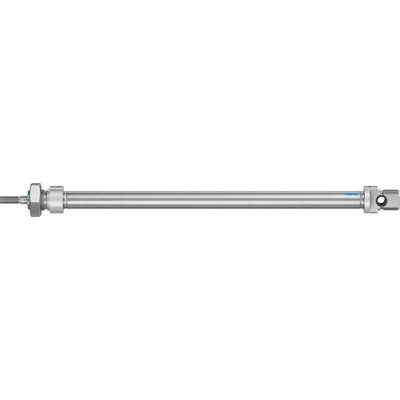

DSNU-12-200-P-A, Festo Pneumatic Cylinder - 19197, 12mm Bore, 200mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

1214699
Номер производителя: DSNU-12-200-P-AПроизводитель: Festo
Цена за шт.
18177.90 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

DSNU Series Roundline Cylinders - Flexible Cushioning

Festo DSNU series round pneumatic cylinders with flexible cushioning rings at both ends of the actuator barrel. Featuring a stainless steel piston rod within a 3 component system that provides excellent running performance and long service life. These double acting pneumatic actuators have dual connection ports for compressed air to be applied for advancing and retracting the piston rod in a linear motion. An extensive range of accessories makes it possible to install the DSNU cylinders virtually anywhere.

Flexible Cushioning

The DSNU P type flexible cushioning pneumatic cylinders absorb energy directly via flexible cushioning rings which are integrated into the main piston. This energy absorbing method makes these cylinders ideal for small load and low speed applications.

Features and Benefits

Conforms to ISO 6432 providing standardised metric mounting dimensions
Stainless steel piston rod with threaded connector
Wide range of stroke length and bore size variants that can be configured to suit a broad range of applications.
Long service life
Double acting operation

How do I mount the pneumatic cylinder?

The DSNU series pneumatic round actuators conform to ISO 6432 standards allowing them to be mounted in any position to suit the required application. The ISO 6432 standard establishes metric mounting dimensions for cylinders providing interchangeability of commonly used hydraulic and pneumatic cylinders. Optional mounting accessories provide further flexibility allowing the cylinder to be attached with a swivel bracket for free movement, foot mounted for support under high loads or combined with other actuators to give a wider range of movement.

Festo Pneumatic Cylinder, Flexible Cushioning, M5 Pneumatic Port - DSNU-12-200-P-A

Pair this Festo pneumatic cylinder with a proximity sensor when you need to tackle precise positioning tasks. Working in tandem, they're ideal for repetitive jobs, such as lifting and lowering items on conveyor belts or assembly lines in packaging warehouses. A simple round design makes installing the cylinder quick and hassle-free. This unit is suitable for use in harsh or humid industrial environments as its piston rod and barrel are made from high-alloy steel that resists corrosion and shrugs off wear.

Features & Benefits

• Compatible with extreme settings, thanks to a wide ambient temperature range between -20°C and +80°C
• Convenient mounting in any position to best suit your setup
• Cushioning on each end keeps machine movement smooth and reduces noise
• Durable wrought aluminium alloy end caps offer an extended service life

Applications

• Food and beverage industries
• Mining and minerals processing
• Automotive manufacturing
• Transportation

What operating pressure range can I use this cylinder in?

The product has a broad operating pressure range between 1.5 and 10 bar, so you can count on its performance in demanding systems.

Техническая спецификация
pdfFesto DSNU/DSNUP/DSN/ESNU/ESN
pdfFesto Pneumatic Cylinders Operating Manual
pdfDSNU-12-200-P-A Specification Sheet
pdfBrochure - Simply Part of The Solution
pdfInstruction Sheet - DSNU( - S) Round Cylinder
Вес:
155гр
Давление - максимальное рабочее:
10 бар
Действие:
Double
Диаметр:
20мм
Длина:
305мм
Модель р:
19197
Отверстие:
12мм
Пневматическое соединение:
M5
Производитель - серия:
DSNU
Рабочая температура - максимальная:
+80°C
Рабочая температура - минимальная:
-20°C
Размеры:
20 x 305mm
Род резьбы поршневого стержня:
Male
Стандарт ISO:
ISO 6432
Стандарт VDMA:
VDMA24364
Тип демпфирования:
Эластомер
Ход:
200мм
