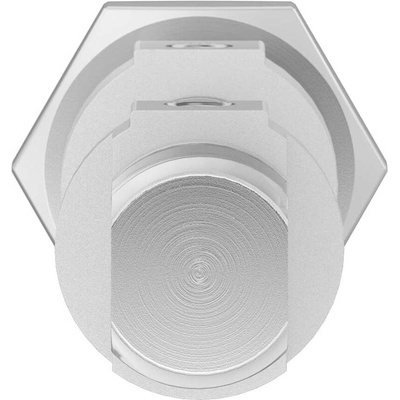

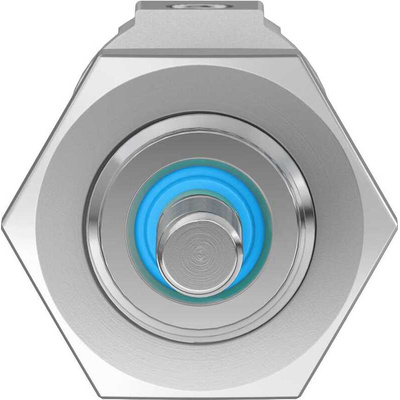

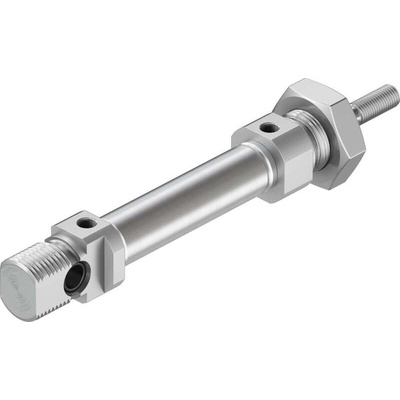

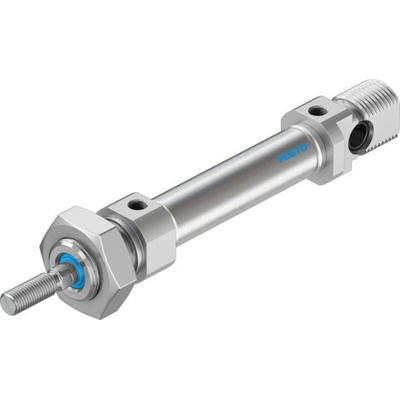

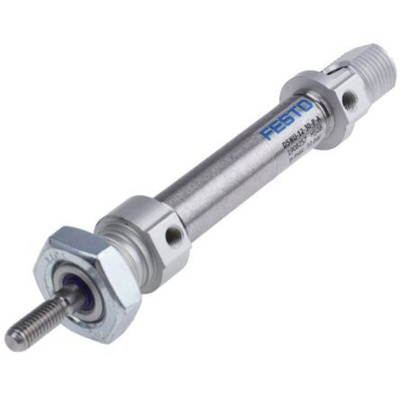

DSNU-12-25-P-A, Festo Pneumatic Cylinder - 19190, 12mm Bore, 25mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Cylinder, M5 Port Connection, 85g Weight - DSNU-12-25-P-A

Looking for a precision positioning component? Turn to this pneumatic cylinder from Festo. It's double-acting, so you get accurate control of movement in both forwards and backwards directions. Flexible end-position cushioning absorbs impact, which reduces the risk of vibration and slip-ups. Minimal vibration also means reduced noise levels, giving you the benefit of quiet machine operation. As it weighs in at only 85g, you can rest assured this component adds minimal bulk to your equipment, which helps to keep your setup lean and efficient.

Features & Benefits

• Wide operating pressure range of 1.5 to 10 bar, so it's suitable for use in demanding pneumatic circuits
• Short 25mm stoke length makes it ideal to use with small loads at low speeds
• No adjustment needed, which saves on time
• Durable nitrile rubber seals for minimal risk of pressure loss

Applications

• Aerospace industry
• Paper and pulp mills
• Food manufacturing
• Marine industry

In what temperatures can I use this pneumatic cylinder?

You can use it in operating temperatures between -20°C and +80°C, so it's just what you need for extreme settings.

Festo DSNU/DSNUP/DSN/ESNU/ESN

Festo Pneumatic Cylinders Operating Manual

DSNU-12-25-P-A Specification Sheet

Instruction Sheet - DSNU Series
