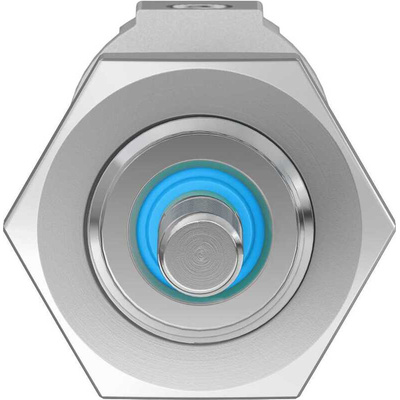

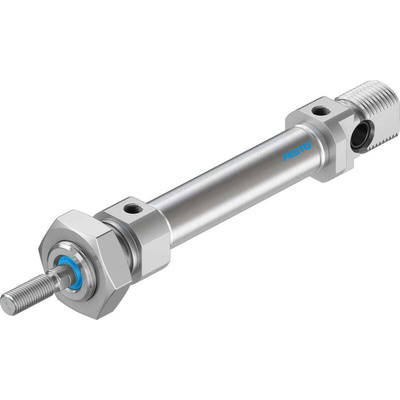

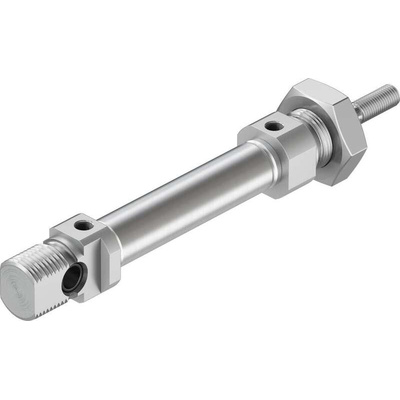

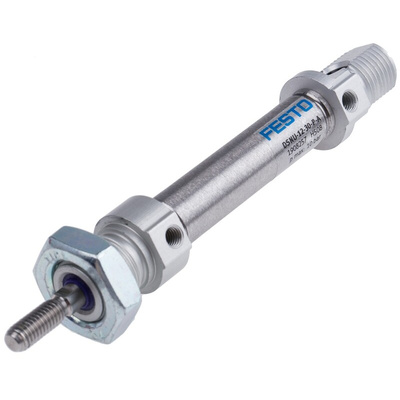

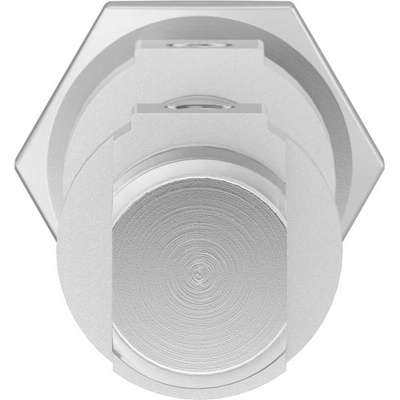

DSNU-12-30-P-A, Festo Pneumatic Cylinder - 1908257, 12mm Bore, 30mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Cylinder, 1.5 to 10 Bar Operating Pressure Range, Wrought Aluminium Alloy Construction - DSNU-12-30-P-A

Need some muscle to move loads in your industrial equipment? Go for this pneumatic cylinder from Festo. It's a double-acting device, which means that its movements are controlled by alternating air pressure between its two ports. This makes it suitable for forward and backward operations like the lifting and dropping of items. The cylinder's wrought aluminium alloy body stands up to corrosion and impact without breaking a sweat, assuring you long-term performance even in rugged settings.

Features & Benefits

• Flexible cushion rings at both ends reduce shock and vibration for a longer service life
• Return stroke force of 50.9N and advance stroke force of 67.9N make it suitable for light-duty applications
• Compatible with a proximity sensor for automated operation
• Safe to use in demanding conditions, thanks to an operating temperature range between -20°C and +80°C

Applications

• Printing presses
• Industrial automation
• Metal fabrication industry

What's the stroke length of this cylinder?

It has a 30mm stroke length, so it fits the bill for short-span operations.

What's the function of the NBR seals in this component?

The seals prevent air leakages and block out dust and contaminants to keep the device in tip-top shape.
