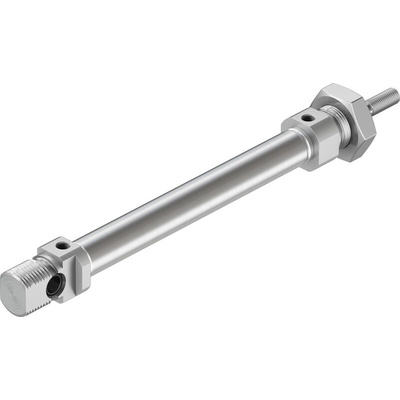

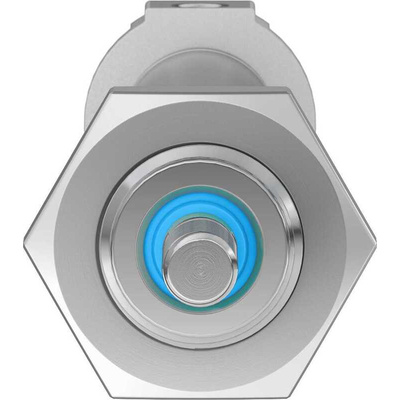

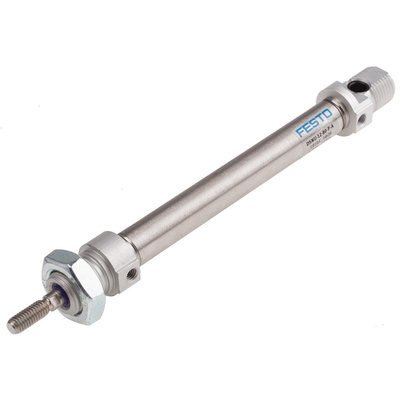

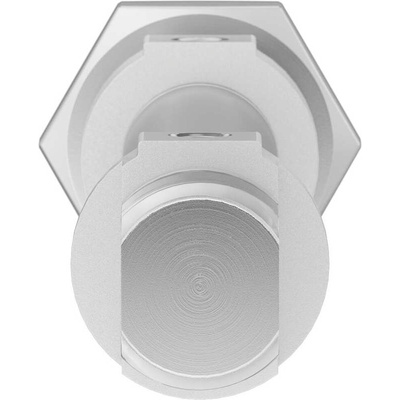

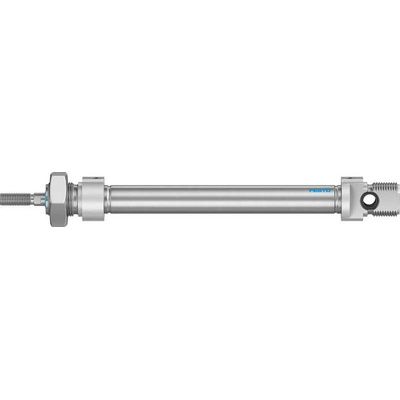

DSNU-12-80-P-A, Festo Pneumatic Cylinder - 19193, 12mm Bore, 80mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Cylinder, With Flexible Polymer Cushioning, NBR and TPE-U Seals - DSNU-12-80-P-A

Working with heavy-duty industrial equipment? Keep it moving smoothly with this pneumatic piston rod cylinder from Festo. Using compressed air, this product can drive its piston and any attached machinery 80mm in both directions. This makes it handy for applications that call for double-action motion. Thanks to flexible polymer cushioning at both ends, you get built-in dampening for up to 0.07J of impact energy to minimise component damage. To top it off, NBR and TPE-U seals further boost reliability and longevity by cutting out the risk of leaks.

• Adaptable component suitable for use with or without a lubricated air supply
• Tolerates an ambient temperature between -20°C and +80°C, making it a safe bet for harsh industrial settings
• Stainless steel and wrought aluminium construction resists corrosion to extend product lifetime in moist environments

Applications

• Aerospace engineering
• Industrial production lines
• Medical devices

What's the purpose of this product's proximity sensor?

The built-in proximity sensor uses a magnetic field to keep this cylinder's piston operating inside a set distance range. This helps prevent internal impact damage or external machine failure caused by the piston overextending.
