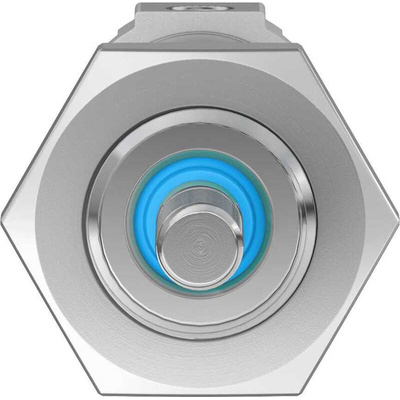

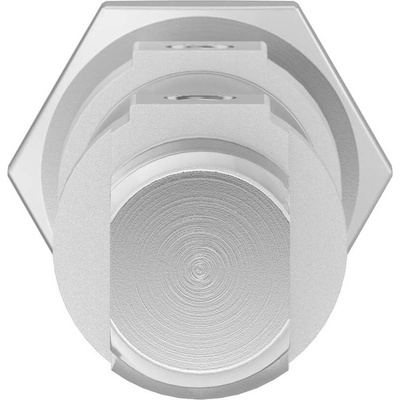

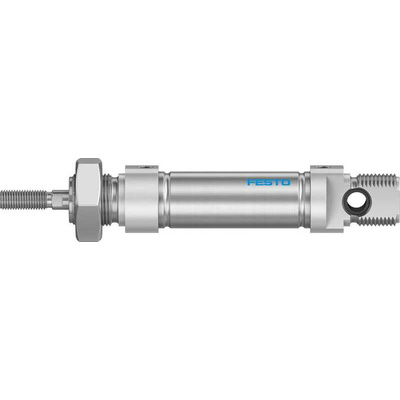

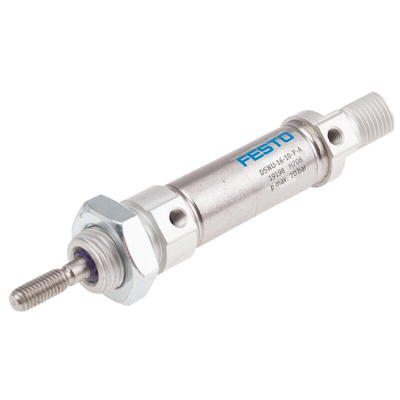

DSNU-16-10-P-A, Festo Pneumatic Cylinder - 19198, 16mm Bore, 10mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Cylinder, 10mm Stroke, 1 to 10 Bar Operating Pressure - DSNU-16-10-P-A

Get your operation moving in the right direction with this pneumatic cylinder from Festo. It creates linear motion to precisely position items in automated processes. A double-acting design means compressed air moves the piston in both directions, so you can rely on accuracy in both directions. Flexible cushioning at each end takes the hit from each stroke, so your equipment doesn't have to. For versatility, you can use this unit in operating pressures between 1 and 10 bars. A light weight of 89.9g ensures it won't drag on your network.

Features & Benefits

• Compact design with a length of 121mm and diameter of 20mm to save space
• NBR and TPE-U(PU) seals ensure an airtight network for peak performance
• Operates in challenging conditions, thanks to a temperature range of -20°C to +80°C

Applications

• Military systems
• Medical devices
• Automated factory processes
• Automotive applications

What type of connection does this pneumatic cylinder have?

The unit has an M5 pneumatic connection, making it widely compatible with standard fittings in your network.

In which position can I mount the cylinder?

This device is flexible and can be mounted in any position to suit your specific setup.
