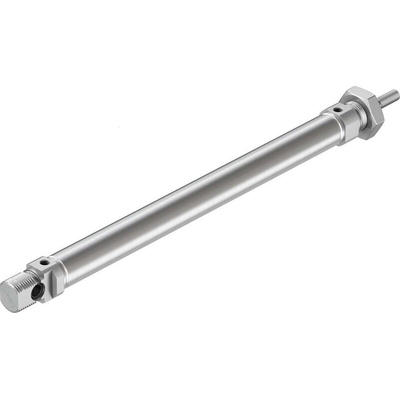

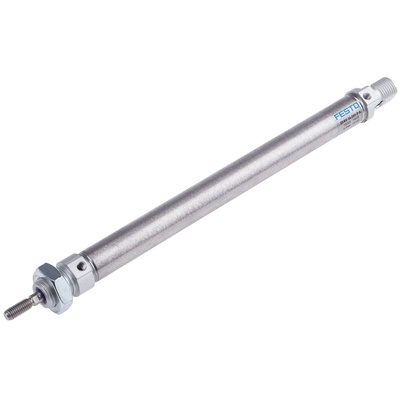

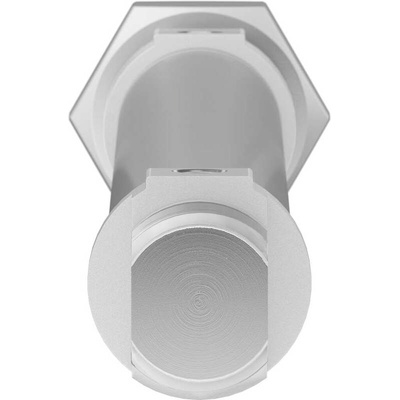

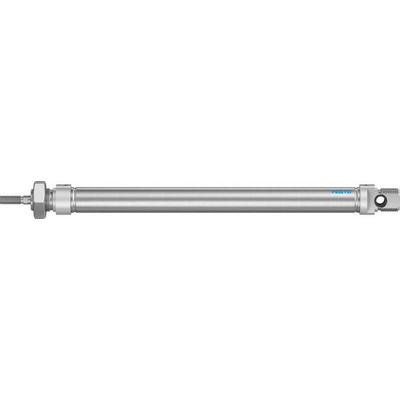

DSNU-16-160-P-A, Festo Pneumatic Cylinder - 19205, 16mm Bore, 160mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

1214721
Номер производителя: DSNU-16-160-P-AПроизводитель: Festo
Цена за шт.
20354.10 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

DSNU Series Roundline Cylinders - Flexible Cushioning

Festo DSNU series round pneumatic cylinders with flexible cushioning rings at both ends of the actuator barrel. Featuring a stainless steel piston rod within a 3 component system that provides excellent running performance and long service life. These double acting pneumatic actuators have dual connection ports for compressed air to be applied for advancing and retracting the piston rod in a linear motion. An extensive range of accessories makes it possible to install the DSNU cylinders virtually anywhere.

Flexible Cushioning

The DSNU P type flexible cushioning pneumatic cylinders absorb energy directly via flexible cushioning rings which are integrated into the main piston. This energy absorbing method makes these cylinders ideal for small load and low speed applications.

Features and Benefits

Conforms to ISO 6432 providing standardised metric mounting dimensions
Stainless steel piston rod with threaded connector
Wide range of stroke length and bore size variants that can be configured to suit a broad range of applications.
Long service life
Double acting operation

How do I mount the pneumatic cylinder?

The DSNU series pneumatic round actuators conform to ISO 6432 standards allowing them to be mounted in any position to suit the required application. The ISO 6432 standard establishes metric mounting dimensions for cylinders providing interchangeability of commonly used hydraulic and pneumatic cylinders. Optional mounting accessories provide further flexibility allowing the cylinder to be attached with a swivel bracket for free movement, foot mounted for support under high loads or combined with other actuators to give a wider range of movement.

Festo Pneumatic Cylinder, 16mm Bore, 1 to 10 Bar Operating Pressure Range - DSNU-16-160-P-A

Use this pneumatic cylinder from Festo to get industrial loads moving in the right direction. Thanks to its stroke length of 160mm, you'll find it's a dependable workmate for long-range operations like material handling. As it's a double-acting cylinder, compressed air accurately drives its forward and backward movement. A durable wrought aluminium alloy cover holds its own against impact and corrosion, so you can rest assured this device performs reliably in harsh environments.

Features & Benefits

• M5 pneumatic connection for compatibility with standard parts
• Safe to use in challenging settings, thanks to its broad operating temperature range between -20°C and +80°C
• NBR and TPE-U seals prevent leakage and ensure efficient performance
• Cushioning plates at each end absorb impact to minimise wear and noise
• Wide operating pressure range of 1 to 10 bar for use in low-pressure and high-pressure applications

Applications

• Transportation industry
• Lifts and elevators
• Marine engineering

What's the ideal assembly position for this cylinder?

You can install this unit in any position that suits your design needs, giving you flexibility in your setup.

Техническая спецификация
pdfFesto DSNU/DSNUP/DSN/ESNU/ESN
pdfFesto Pneumatic Cylinders Operating Manual
pdfDSNU-16-160-P-A Specification Sheet
pdfBrochure - Simply Part of The Solution
pdfInstruction Sheet - DSNU( - S) Round Cylinder
Вес:
163.5g
Давление - максимальное рабочее:
10 бар
Действие:
Double
Диаметр:
20мм
Длина:
271мм
Модель р:
19205
Отверстие:
16мм
Пневматическое соединение:
M5
Производитель - серия:
DSNU
Рабочая температура - максимальная:
+80°C
Рабочая температура - минимальная:
-20°C
Размеры:
20 x 271mm
Род резьбы поршневого стержня:
Male
Стандарт ISO:
ISO 6432
Стандарт VDMA:
VDMA24364
Тип демпфирования:
Эластомер
Ход:
160мм
