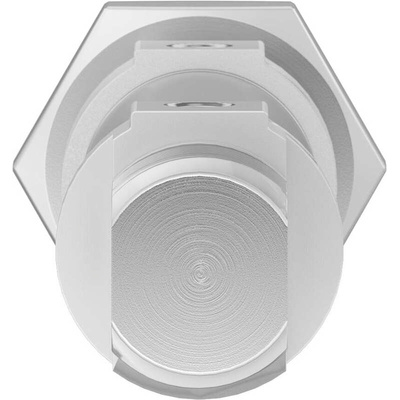

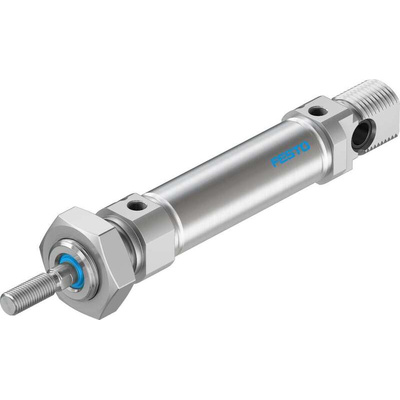

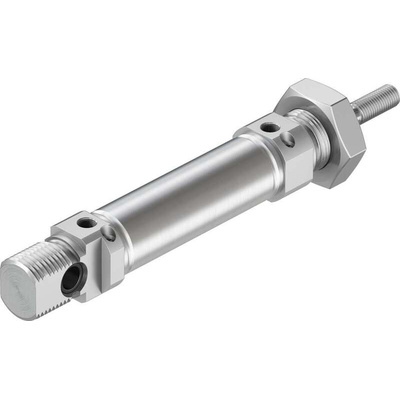

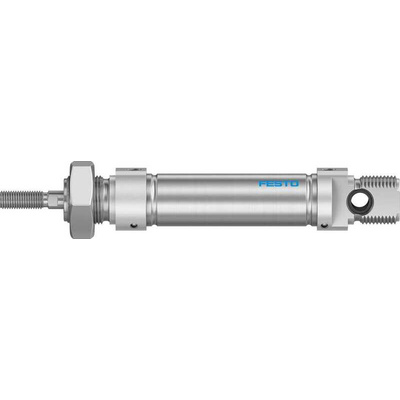

DSNU-16-20-PPV-A, Festo Pneumatic Cylinder - 1908268, 16mm Bore, 20mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

1214727
Номер производителя: DSNU-16-20-PPV-AПроизводитель: Festo
Цена за шт.
22214.40 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Festo Pneumatic Cylinder, Pneumatic Cushioning, 1 to 10 Bar Operating Pressure - DSNU-16-20-PPV-A

When items need moving, place your trust in this pneumatic cylinder from Festo. It's double-acting, meaning there's controlled movement on the outward and inward strokes of the rod. This means you'll have no trouble carrying out actions involving pushing and pulling or lifting and lowering. As the drive features adjustable cushioning at both ends, the cylinder can absorb the energy of medium-large loads and high speeds. The result is a smooth mover that chalks up minimal wear over time.

Features & Benefits

• Handles temperatures between -20°C and +80°C, making it reliable in manufacturing environments
• Threaded rod for accessorising with a foot (121-5632) or rod eye (121-5558), enabling swivelling and pivoting movements
• Stainless steel barrel and rod with wrought-aluminium bearings and end caps give it a long service life

Applications

• Robotics systems
• Electronics assembly
• Packaging hubs
• Distribution facilities
• Automotive industry

How can I automate rod positioning?

Rod positioning is easy to detect with a sensor (121-5836), which is no trouble to add with a mounting kit (121-5566). This hugs the barrel, so it doesn't take up unnecessary space. A single screw fixing ensures swift fitting.

Техническая спецификация
pdfFesto DSNU/DSNUP/DSN/ESNU/ESN
pdfFesto Pneumatic Cylinders Operating Manual
pdfDSNU-16-20-PPV-A Specification Sheet
pdfBrochure - Core Product Range
pdfInstruction Sheet - DSNU(-S) Round Cylinder
