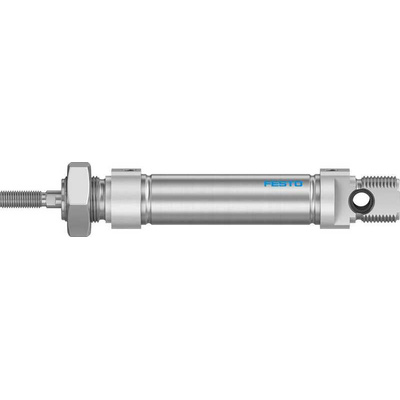

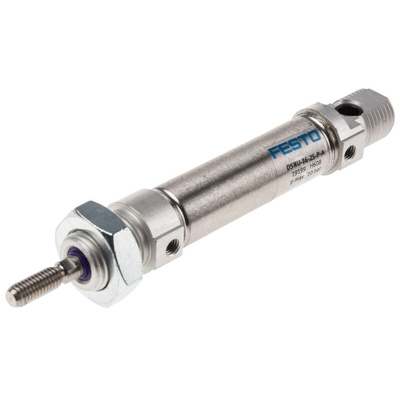

DSNU-16-25-P-A, Festo Pneumatic Cylinder - 19199, 16mm Bore, 25mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Cylinder, 25mm Stroke, 1 to 10 Bar Operating Pressure - DSNU-16-25-P-A

Looking for linear motion to get your operations moving? Get the precision control you need with this Festo pneumatic cylinder. The unit's double-acting design takes in compressed power at both ends, driving the piston and delivering accuracy in both directions. High-alloy steel construction withstands corrosion, extending the lifespan of the product. Plus, flexible cushioning rings buffer it against impact to shrug off wear. You can easily squeeze this compact component into tight spaces thanks to its 136mm length. It's a multitalented option that handles a wide operating pressure range between 1 and 10 bar.

Features & Benefits

• NBR and TPE-U(PU) seals ensure an airtight network
• Handles an operating temperature range of -20°C to +80°C, for reliable industrial performance
• M5 pneumatic connection for broad compatibility with standard fittings

Applications

• Access controls
• Industrial manufacturing lines
• Medical imaging systems
• Aerospace applications
• Automotive industry

What maintenance does this pneumatic cylinder need?

It's a low-maintenance device. To make sure it works at its best, just keep it lubricated.

In which position can I mount the cylinder?

You can mount this product in any position to suit the needs of your system.

Festo DSNU/DSNUP/DSN/ESNU/ESN

Festo Pneumatic Cylinders Operating Manual

DSNU-16-25-P-A Specification Sheet

Instruction Sheet - DSNU(-S) Round Cylinder

Brochure - Simply Part of The Solution
