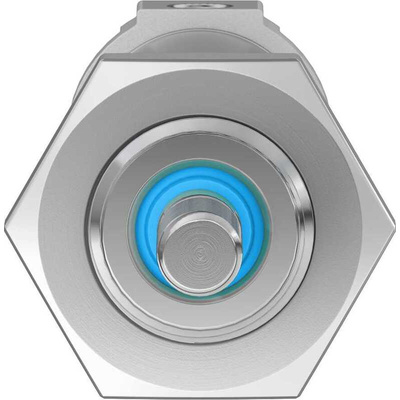

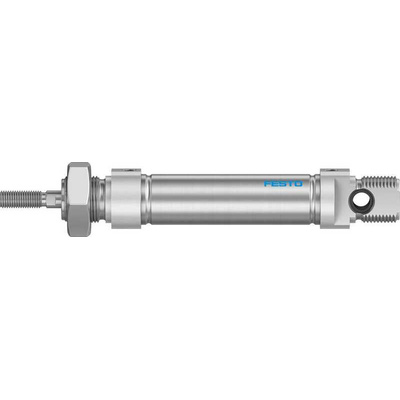

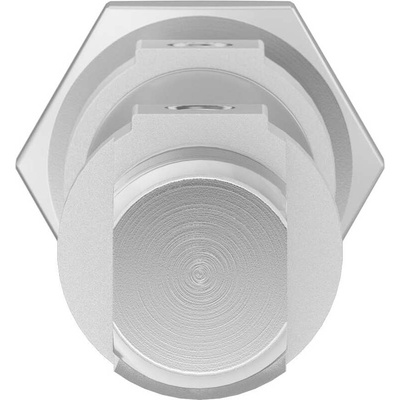

DSNU-16-25-PPS-A, Festo Pneumatic Cylinder - 559263, 16mm Bore, 25mm Stroke, DSNU Series, Double Acting, Пневмоцилиндр

Festo Pneumatic Cylinder, M5 Port Connection, Air Cushioning - DSNU-16-25-PPS-A

Save time assembling and setting up your system with this pneumatic cylinder from Festo. It has self-adjusting air cushioning and a special extension piston that controls the venting of the air cushion. This means there's no need for any adjusting screw that has to be set manually, freeing you up for other tasks. The cushioning adapts to various loads and speeds to make sure the piston travels smoothly and dynamically to its end position every time.

Features & Benefits

• Double-acting design with two ports gives you accurate bidirectional control
• Wide operating temperature range of -20°C to +80°C means you can use it in harsh industrial environments
• High-alloy steel piston rod and cylinder barrel resist corrosion for a long service life
• M5 threaded connectors offer easy attachment

Applications

• Paper and pulp mills
• Material handling
• Medical imaging systems

What's the stroke length of this cylinder?

The unit has a stroke of 25mm, making it an ideal choice for precision positioning of small parts. This could be for work such as clamping and holding actions in a manufacturing process or for machine tooling.
